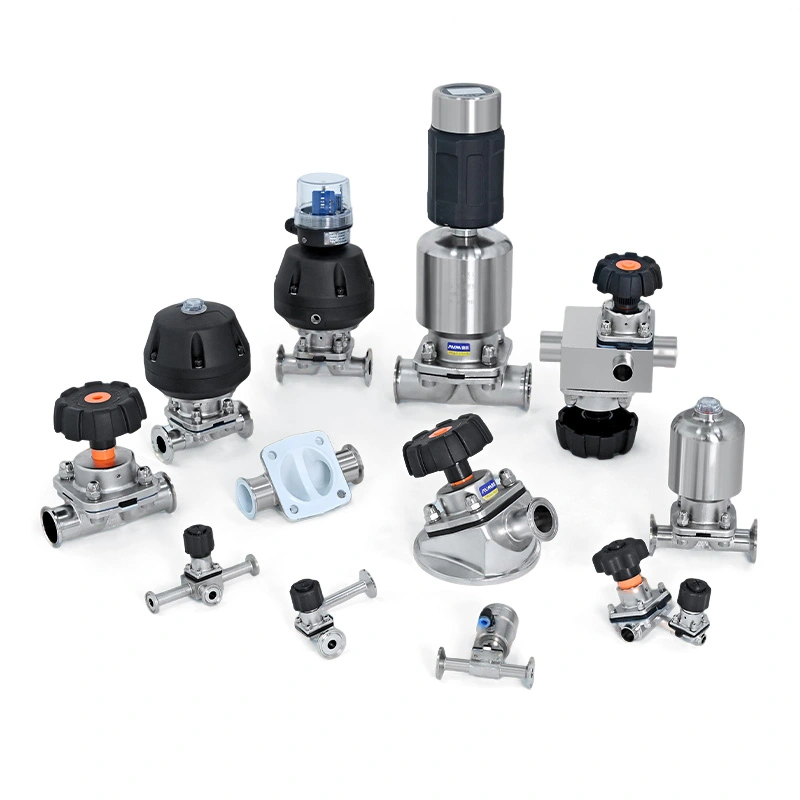

This unique structure effectively prevents external leakage, reduces contamination risks, and protects internal operating parts from corrosive media. With excellent sealing performance, smooth internal surfaces, and flexible operation options, the AVM Sanitary Manual Pneumatic Actuated Diaphragm Valve provides a reliable solution for applications requiring high hygiene standards, process safety, and long-term operational stability.
The main advantage of the AVM Sanitary Diaphragm Valve is its complete media isolation structure. The flexible diaphragm acts as a barrier between the process fluid and the mechanical operating components, ensuring that the product only contacts the hygienic valve body and diaphragm surface.
Compared with traditional valves using packing seals, the diaphragm structure eliminates potential leakage points caused by stem movement. This design significantly improves contamination control and makes the valve especially suitable for sterile processing, corrosive liquid handling, and applications requiring strict product protection.
The diaphragm also protects the actuator, stem, and bonnet from direct contact with aggressive chemicals or sensitive process fluids, helping extend service life and reduce maintenance frequency.

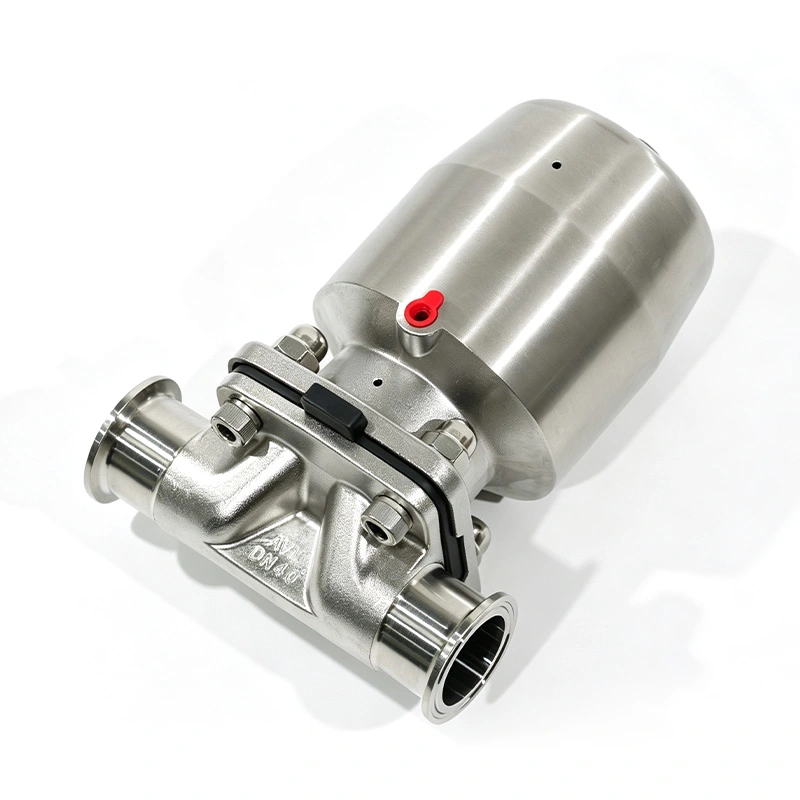

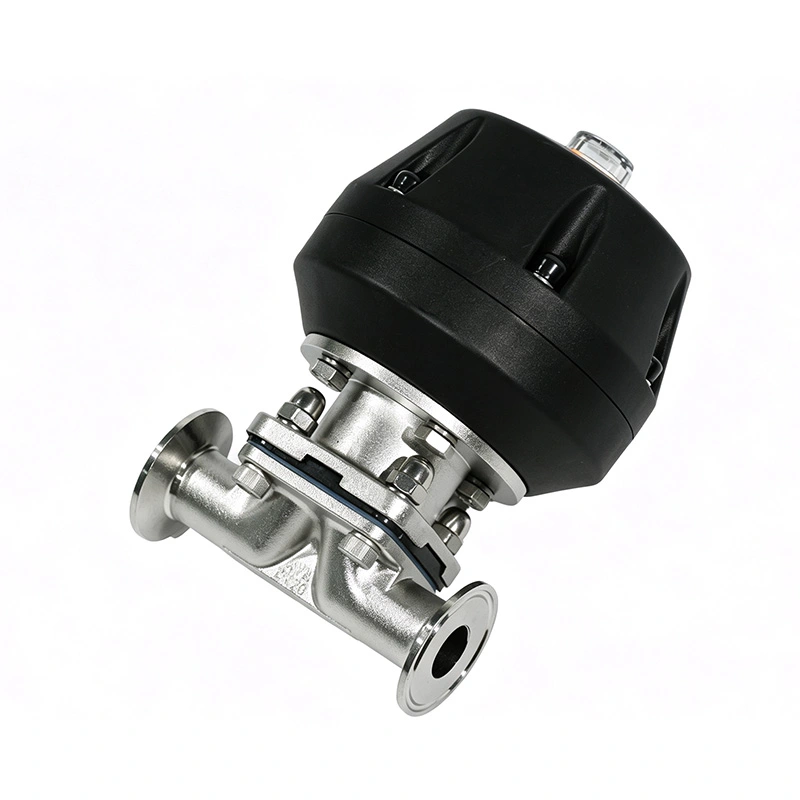

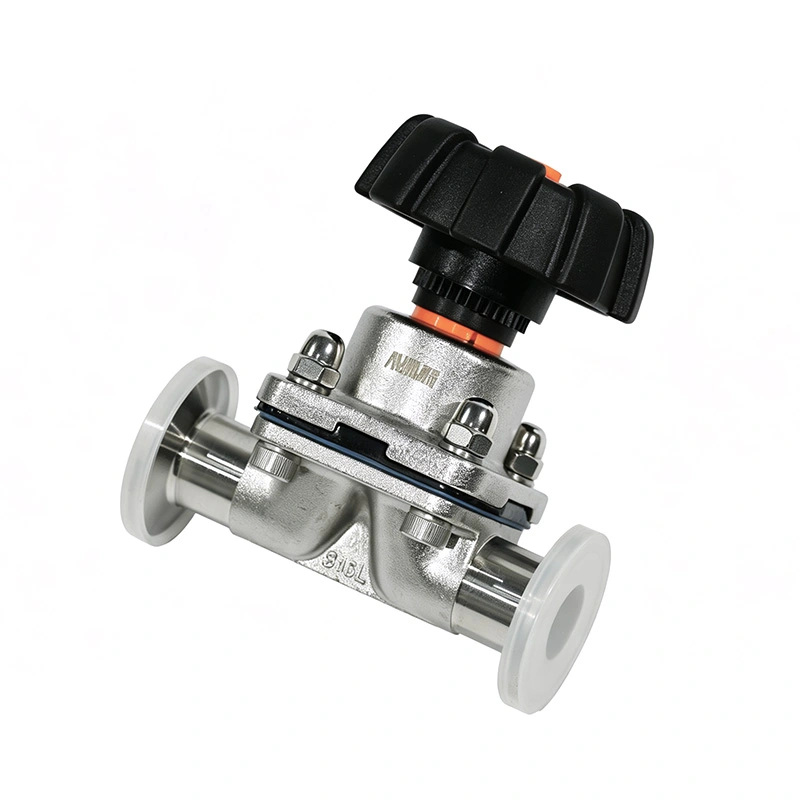

The AVM Sanitary Manual Pneumatic Actuated Diaphragm Valve operates through vertical movement of a flexible diaphragm controlled by manual operation or pneumatic actuation.
During the closing process, the valve stem pushes the diaphragm downward until it contacts the valve seat. The elastic deformation of the diaphragm creates a reliable sealing barrier, stopping liquid flow and preventing internal leakage.
During opening, the diaphragm moves upward away from the valve seat, restoring the flow passage and allowing the process media to pass through the valve smoothly.
Because the process media remains completely isolated from the actuator mechanism, the valve provides excellent corrosion resistance, stable sealing performance, and improved hygiene throughout its service life.
The flexible diaphragm provides excellent sealing capability without relying on traditional packing systems. The valve delivers stable shut-off performance, helping prevent internal leakage and ensuring reliable operation in demanding liquid processing applications.
The diaphragm creates a full isolation barrier between the process liquid and the valve operating components. This prevents contamination, reduces corrosion risks, and protects the mechanical structure from aggressive or sensitive media.
The optimized internal flow path minimizes product retention areas and reduces the risk of contamination buildup. Smooth product-contact surfaces simplify cleaning procedures and support CIP/SIP-compatible hygienic processing systems.
The straight-through valve design provides efficient liquid flow with reduced turbulence and pressure loss. This helps improve transfer efficiency and maintain stable process performance.
The valve is manufactured from high-quality SS316L stainless steel and can be equipped with different diaphragm materials to meet various chemical resistance, temperature, and process requirements.
The replaceable diaphragm design allows maintenance personnel to replace the sealing component without changing the complete valve assembly. This reduces maintenance costs and improves production efficiency.

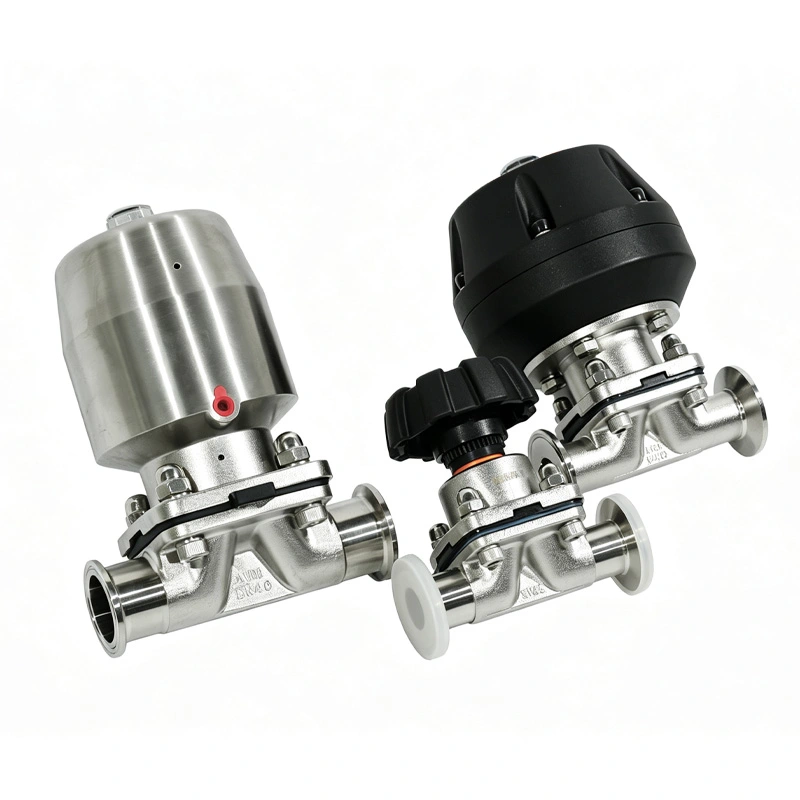

The valve is available in manual and pneumatic operation configurations. Optional position feedback indicators, sensors, and explosion-proof actuators allow integration with PLC, DCS, and automated process control systems.
AVM Sanitary Manual Pneumatic Actuated Diaphragm Valve is designed according to hygienic processing principles and supports GMP-oriented production environments. FDA-compliant diaphragm materials are available to meet strict requirements in pharmaceutical, food, and biotechnology industries.
The sanitary structure helps manufacturers maintain product purity, simplify cleaning validation, reduce contamination risks, and improve overall process reliability.

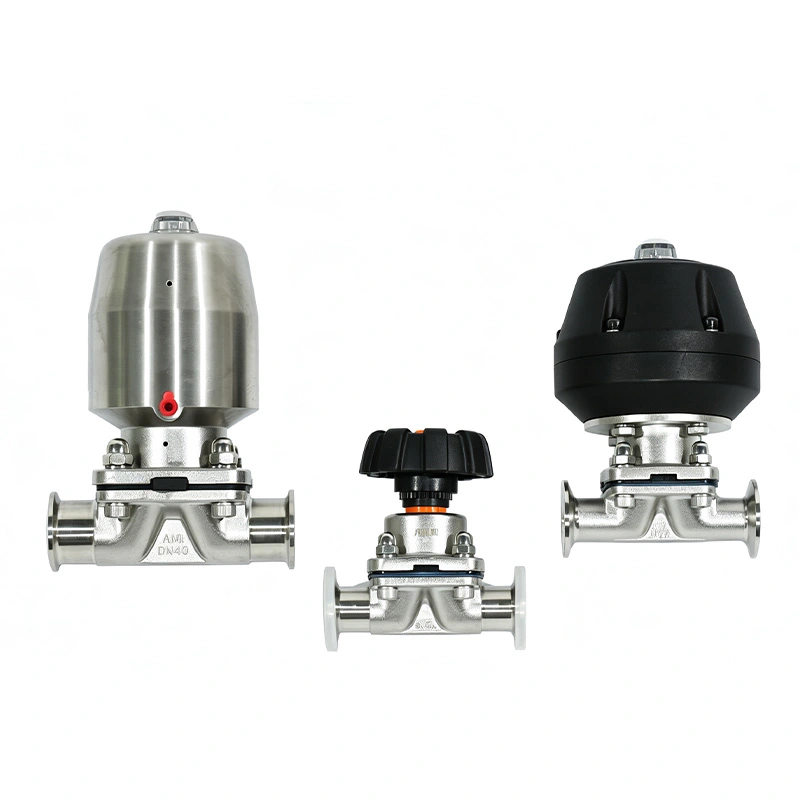

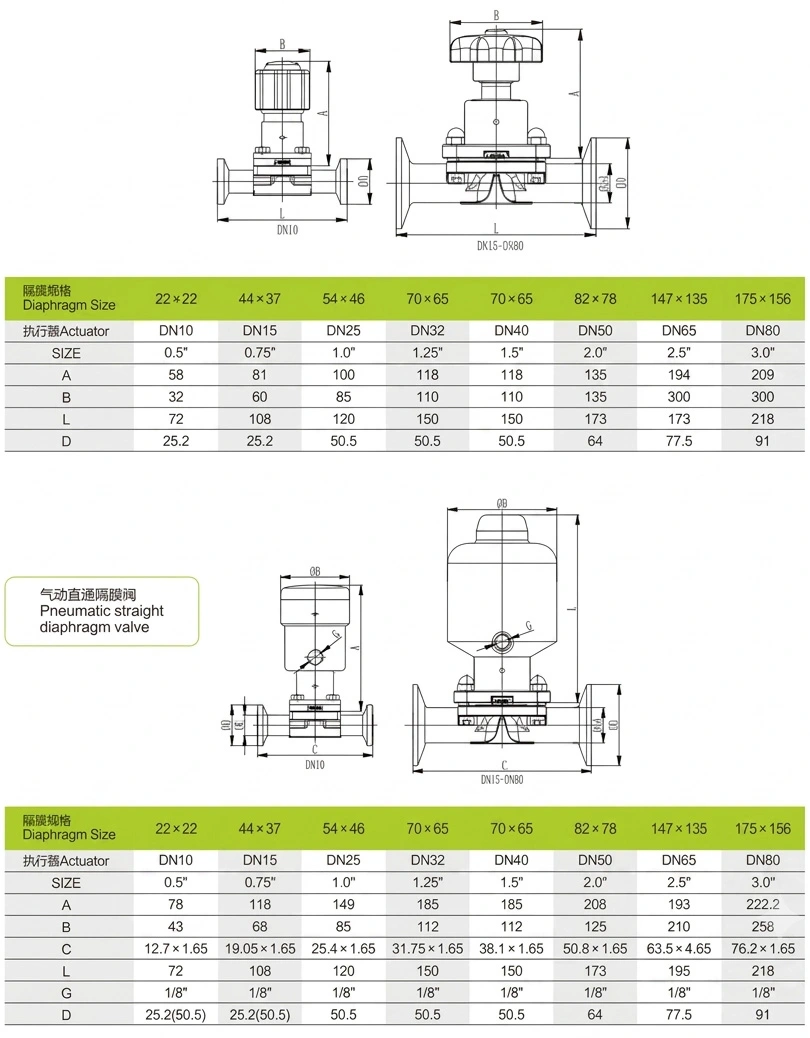

| Parameter | Specification |
| Valve Type | Sanitary Manual Pneumatic Actuated Diaphragm Valve |
| Size Range | DN10-DN100 |
| Body Material | SS316L Stainless Steel |
| Seal Materials | PTFE, EPDM, Silicone, FKM |
| Operation | Manual / Pneumatic Actuator |
| Connection Type | Tri-Clamp, Flange, Butt Weld |
| Connection Standard | DIN, ASME, BS, 3A |
| Cleaning Method | CIP / SIP Compatible |
| Optional Control | Burkert Feedback Indicator, Position Sensor, Explosion-Proof Actuator Exd II BT4 |
AVM Sanitary Diaphragm Valve is widely used in pharmaceutical liquid processing systems, including purified water systems, Water for Injection (WFI) systems, API processing lines, CIP/SIP cleaning systems, and sterile liquid transfer applications. The diaphragm isolation structure prevents product contamination while protecting internal components from corrosive pharmaceutical media, making it suitable for high-purity manufacturing environments.
In biotechnology production, the valve provides reliable control for fermentation systems, cell culture processes, sterile liquid handling, and biopharmaceutical processing equipment. The complete separation between process media and operating mechanisms helps maintain process integrity and reduces contamination risks in sensitive biological applications.
The sanitary diaphragm valve is suitable for hygienic liquid transfer and flow control in dairy processing, beverage production, syrup transfer, and food ingredient systems. Its smooth internal surfaces and FDA-compliant sealing options support easy cleaning and help maintain food safety standards during continuous production.
With corrosion-resistant SS316L construction and multiple diaphragm material choices, the valve is designed for acid and alkali transfer, fine chemical processing, chemical dosing systems, ultra-pure water systems, and process water distribution where reliable sealing and chemical resistance are required.
A pharmaceutical manufacturer used AVM Sanitary Diaphragm Valves for purified water and liquid transfer systems. The customer required reliable shut-off performance, easy cleaning, and reduced contamination risk during frequent CIP/SIP operations.
After installation, the valve provided stable sealing performance, simplified maintenance, and improved process reliability with its diaphragm isolation design and hygienic stainless steel construction.
A food processing customer selected AVM Sanitary Diaphragm Valves for liquid ingredient transfer applications. The smooth internal structure and FDA-compliant sealing materials helped improve cleaning efficiency and maintain safe production conditions.
The customer feedback showed improved operational stability and reduced downtime during routine cleaning and maintenance.
A biotechnology customer applied AVM diaphragm valves in sterile liquid handling equipment. The complete separation between process media and operating components helped minimize contamination risks and maintain consistent process performance.
AVM Sanitary Manual Pneumatic Actuated Diaphragm Valve combines hygienic design, reliable diaphragm sealing technology, and flexible automation capability to provide a dependable solution for liquid processing industries.
The valve helps manufacturers achieve safer operation, improved contamination control, reduced maintenance requirements, and stable production performance in pharmaceutical, biotechnology, food, beverage, and chemical applications.
A sanitary diaphragm valve is designed for hygienic shut-off and flow control of liquids in pharmaceutical, biotechnology, food, beverage, and chemical processing systems where cleanliness, product protection, and contamination prevention are important.
AVM provides multiple diaphragm material options including PTFE, EPDM, Silicone, and FKM. Different materials can be selected according to the process media, temperature requirements, and chemical compatibility.
Yes. The valve can be equipped with pneumatic actuators, position feedback indicators, sensors, and explosion-proof actuator systems for integration into automated production lines and intelligent control systems.
The valve supports Tri-Clamp, flange, and butt weld connections with standards including DIN, ASME, BS, and 3A to meet different sanitary piping requirements.
The standard delivery time is approximately 2-4 weeks after order confirmation, depending on valve specifications, actuator configuration, and customization requirements.
