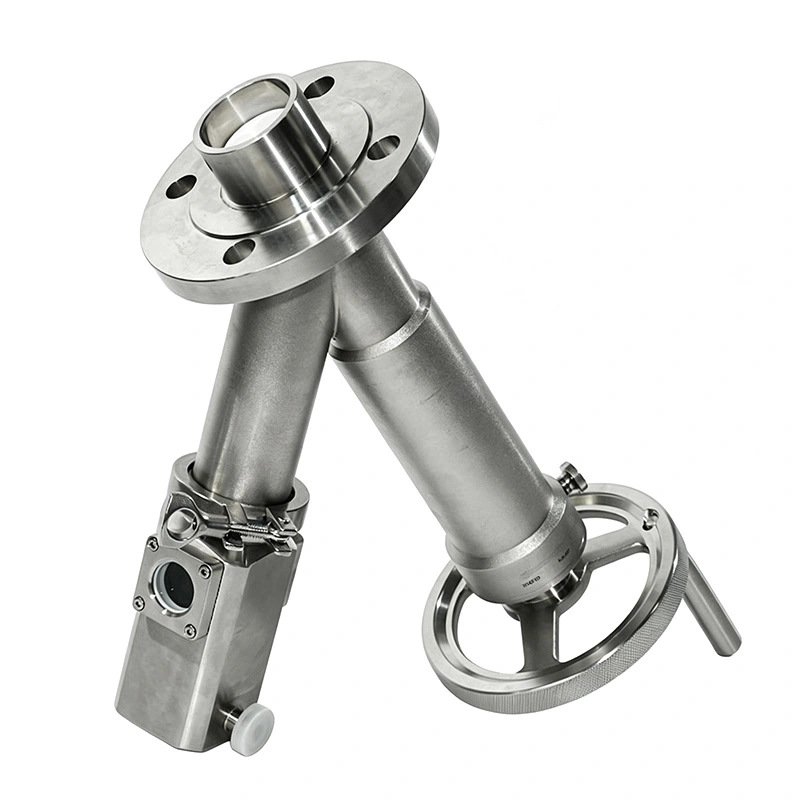

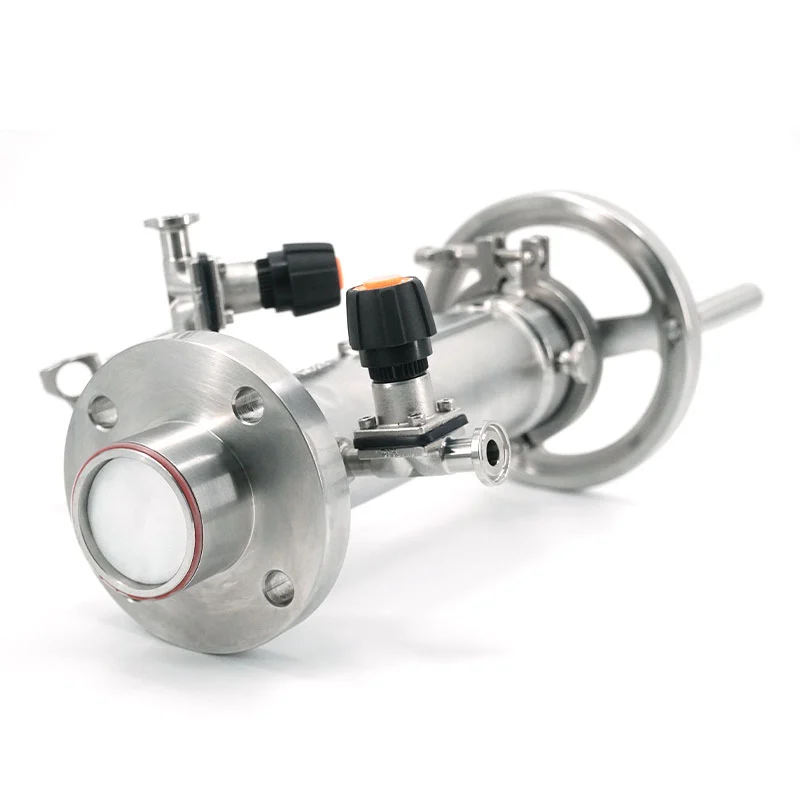

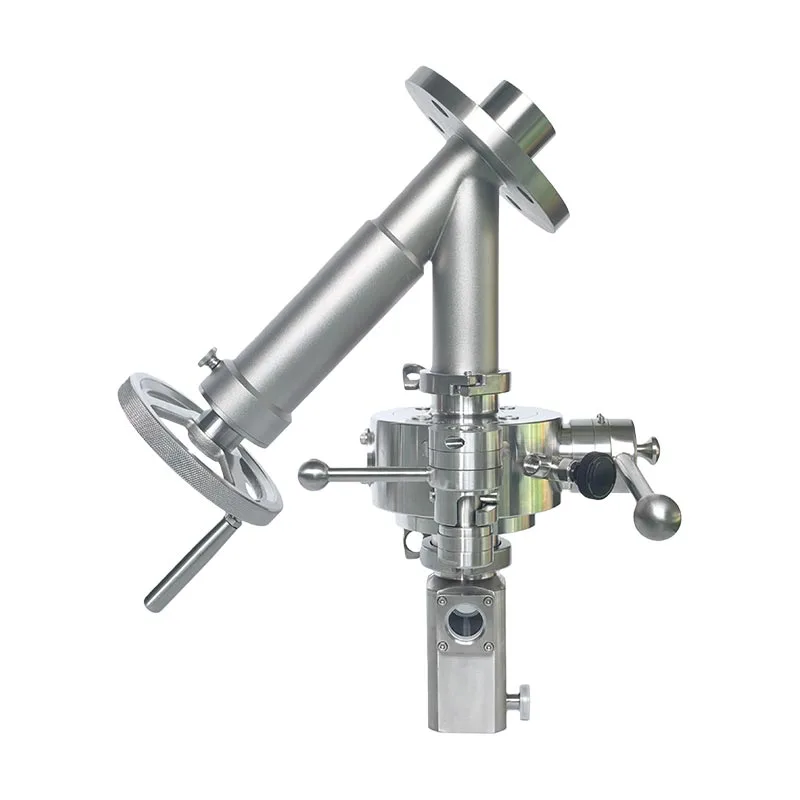

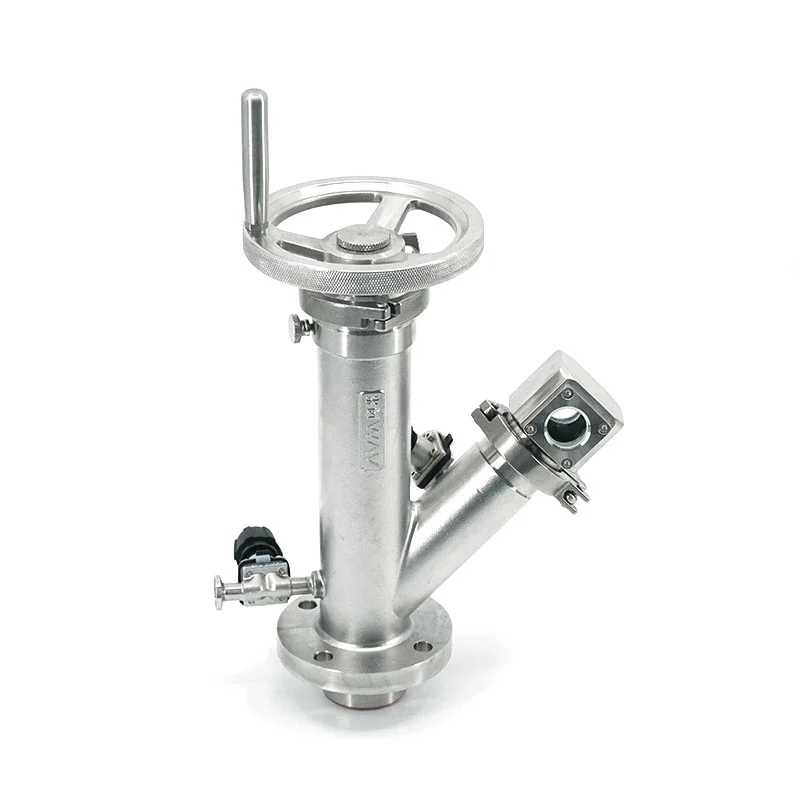

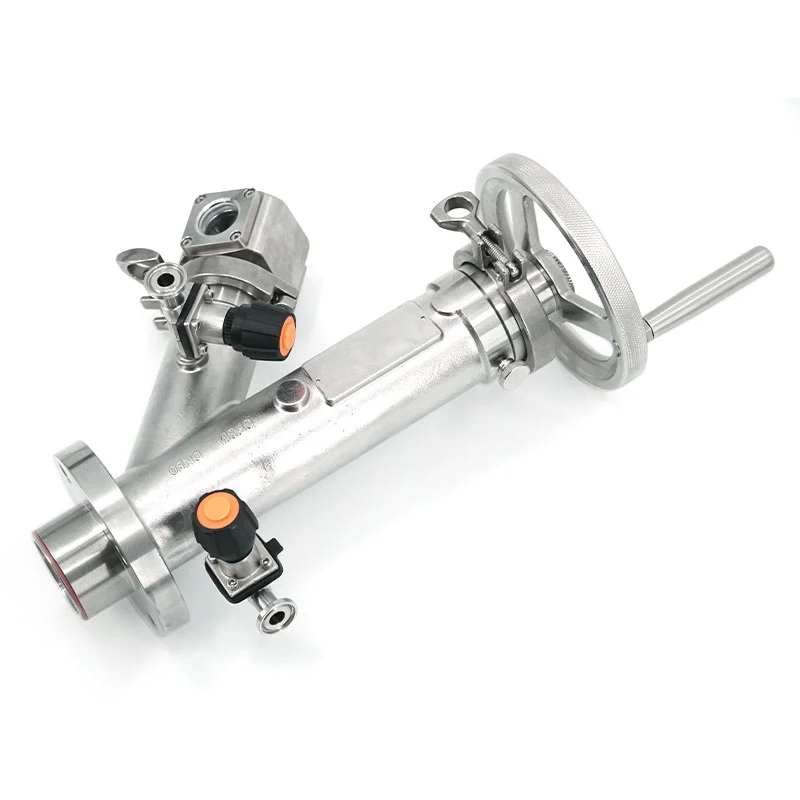

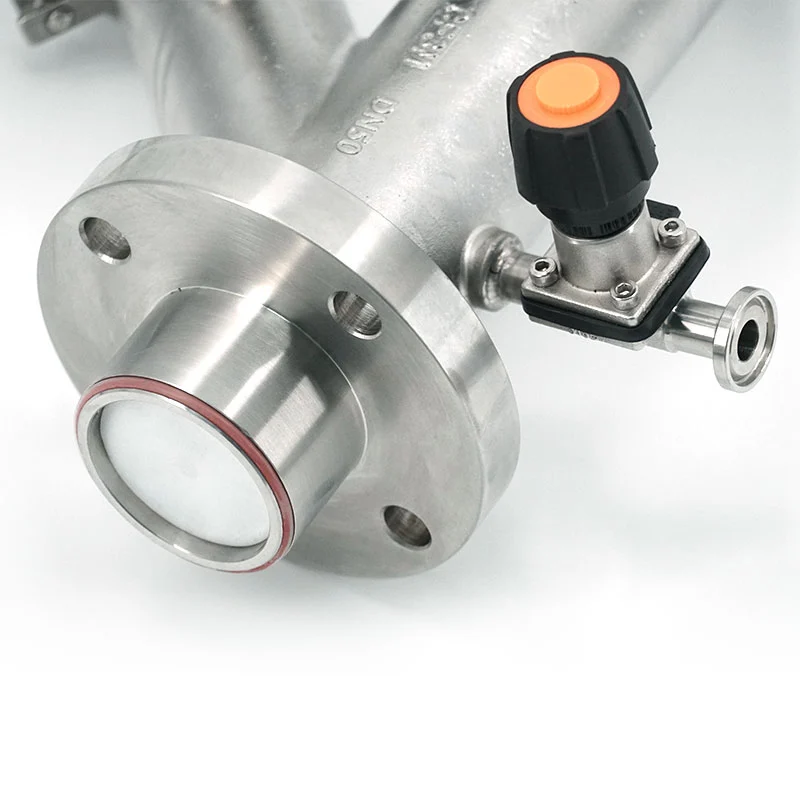

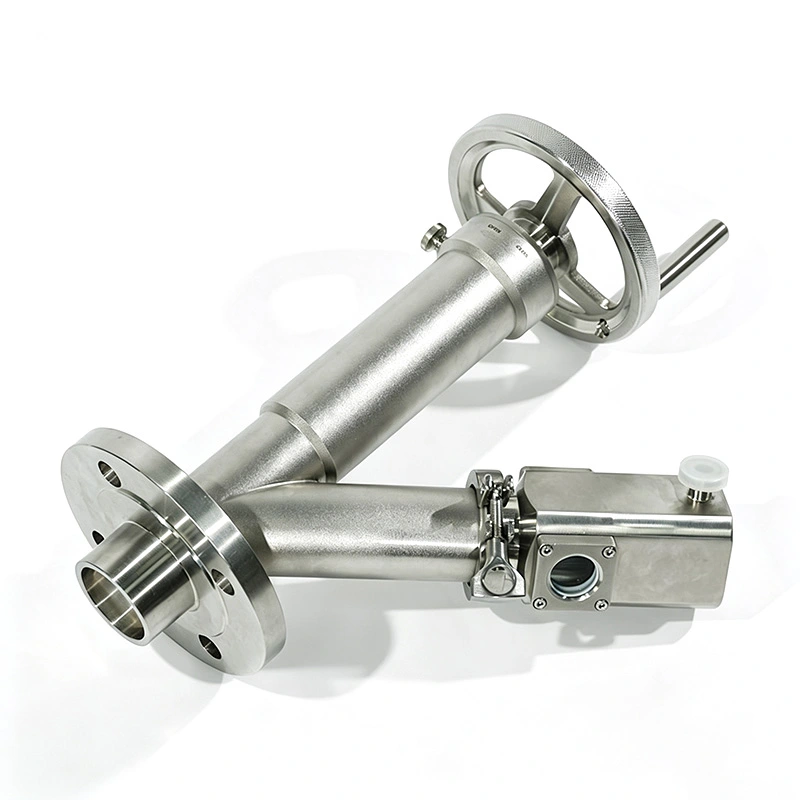

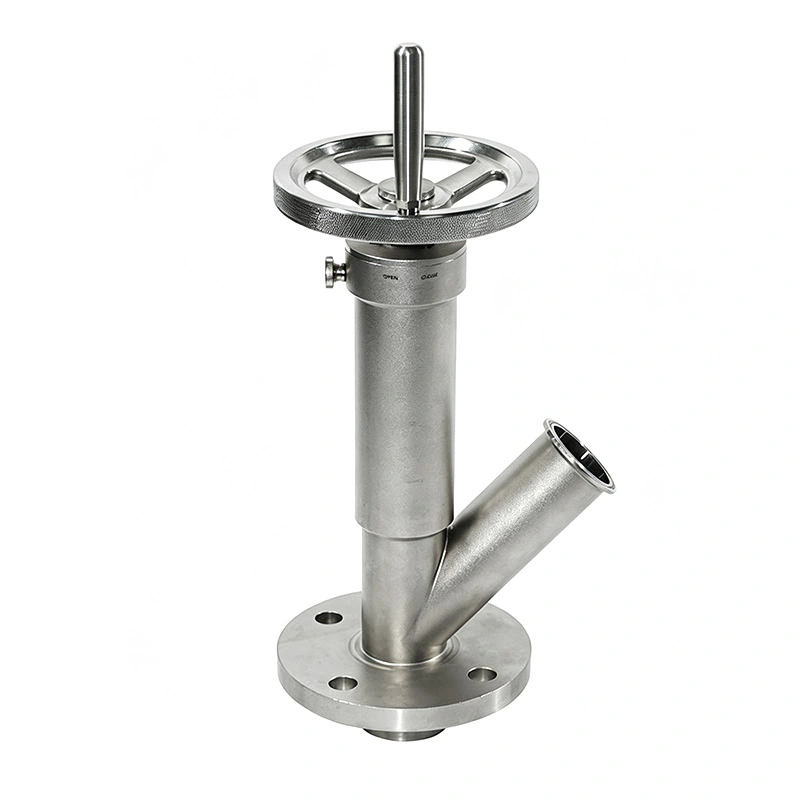

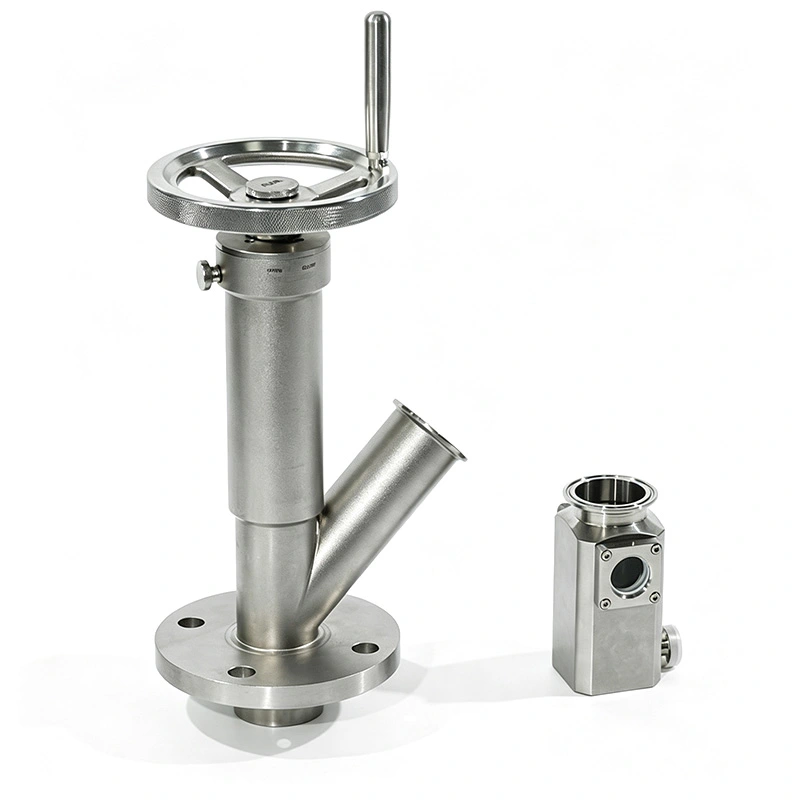

AVM Aseptic High Containment Powder Sampling Valve is designed for enclosed sampling processes where operator protection, product sterility, and sample reliability are critical. The valve is suitable for sealed reactors, storage vessels, pipelines, and powder transfer systems operating under positive or negative pressure. Its expanding piston sealing design eliminates direct material contact with conventional O-rings, helping reduce the risks of material leakage, cross-contamination, and residue accumulation.
Manufactured with SS316L stainless steel, the valve supports demanding applications involving highly active pharmaceutical ingredients, sterile powders, fine chemicals, and other controlled materials. AVM provides this sampling solution through its own manufacturing capabilities and operates under ISO 9001, CE, and FDA-related compliance requirements. The equipment can also support CIP and SIP procedures, helping manufacturers simplify cleaning and sterilization operations while maintaining a closed processing environment.
The Aseptic High Containment Powder Sampling Valve allows samples to be collected without opening the main processing system. This helps maintain system isolation during sampling and reduces direct exposure between operators and high-activity materials.
The valve can be used in both pressurized and negative-pressure processing environments. Its sealing structure helps maintain system integrity during the sampling process, making it suitable for reactors, pipelines, and enclosed powder handling equipment.
A quick bayonet connection allows sampling bottles to be installed and removed efficiently. The secure connection helps reduce unnecessary handling steps and supports more consistent sampling procedures.
The self-developed expanding piston structure avoids conventional O-rings in the primary material contact area. This design helps reduce concerns associated with seal aging, particle shedding, and material accumulation in critical sampling environments.
The internal flow path is designed to minimize difficult-to-clean areas. By reducing potential powder retention, the valve supports more representative sampling and helps simplify cleaning validation requirements.
The Aseptic High Containment Powder Sampling Valve is compatible with CIP and SIP processes. Cleaning and steam sterilization can be performed without routine removal of the valve from the processing system, supporting more efficient production changeovers.
In pharmaceutical and specialty chemical production, a sample must accurately represent the material inside the process. The internal design of the Aseptic High Containment Powder Sampling Valve helps reduce the influence of material residue and uncontrolled external exposure on the sampling procedure.
The valve can be used for powders, granules, pastes, liquids, and other process media where controlled sample collection is required. Its closed operating principle is particularly relevant to applications where repeated laboratory testing and process quality verification are part of routine production control.
| Item | Parameter |
| Body Material | SS316L |
| Sealing Structure | Expanding piston, no contact O-rings |
| Connection Sizes | DN15-DN25 (1/2"-1") |
| Connection Types | Clamp, weld end, flange |
| Max Operating Pressure | 6 bar |
| Operating Temperature | -30℃ ~ +150℃ (depending on seal material) |
| Operation Mode | Manual |
| Cleaning & Sterilization | CIP / SIP Compatible |
The valve body is manufactured from SS316L stainless steel for applications requiring corrosion resistance and hygienic process equipment. AVM manufactures its sampling equipment with attention to material traceability, processing consistency, and quality control.
AVM holds ISO 9001, CE, and FDA-related certifications or compliance support applicable to relevant products and material-contact requirements. Supporting technical and validation documentation can be provided according to project requirements, helping customers evaluate the equipment for regulated production environments.
The Aseptic High Containment Powder Sampling Valve can be used for API production, HPAPI processing, granulation systems, closed powder transfer, reaction vessels, and storage equipment where controlled sampling is required.
It is suitable for controlled sampling applications involving fermentation systems, bioreactors, aseptic preparations, culture media, and other processes that require attention to sterility and contamination control.
For high-purity chemicals, catalysts, oxidizing powders, and controlled intermediates, the valve provides an enclosed sampling option that can be integrated into process equipment and quality control procedures.
The valve can also support sampling of powdered ingredients and finished materials where hygienic handling and batch quality verification are important.
A Chinese anti-tumor API manufacturer producing OEB5-grade cytotoxic materials experienced powder residue, sealing-component contamination concerns, and dust leakage when using conventional sampling ball valves. These issues increased cleaning requirements and led to repeated sampling and testing procedures.
The manufacturer worked with AVM to install customized DN20 valves on reactors and granulation silos. According to the provided project results, the equipment upgrade improved sampling efficiency and reduced maintenance demands:
The optimized internal structure controlled sample data deviation to within 0.3%. The O-ring-free design reduced annual sealing-component replacement costs by 75% and shortened online cleaning time by 40%. Sampling operation time was reduced from approximately 20 minutes to 6 minutes, while three production lines reportedly operated for two years without leakage or contamination incidents.
When selecting an Aseptic High Containment Powder Sampling Valve, purchasers often need to confirm more than the valve size. AVM can support configuration discussions covering connection type, installation position, process pressure, operating temperature, material characteristics, and compatibility with surrounding containment equipment.
The valve can be evaluated for integration with sealed reactors, pipelines, powder transfer systems, and related high-containment equipment. This approach helps buyers select a sampling configuration based on their actual process conditions rather than relying only on standard dimensions.
The Aseptic High Containment Powder Sampling Valve uses an expanding piston sealing structure and avoids conventional O-rings in the primary material-contact cavity. Combined with a hygienic internal design, this helps reduce potential residue accumulation and supports applications requiring a higher level of containment and cleanability.
Yes. The valve is designed to support CIP and SIP procedures. In suitable system configurations, cleaning and steam sterilization can be performed in place, reducing the need for routine disassembly.
Yes. The valve can be configured for both negative-pressure and pressurized process environments within its specified operating parameters. The final selection should be based on actual process pressure, temperature, media characteristics, and system connection requirements.
Buyers should provide information such as process medium, particle characteristics, operating pressure, temperature, connection standard, vessel or pipeline size, sampling frequency, and required cleaning or sterilization procedures. This information helps AVM recommend an appropriate configuration for the intended process.
