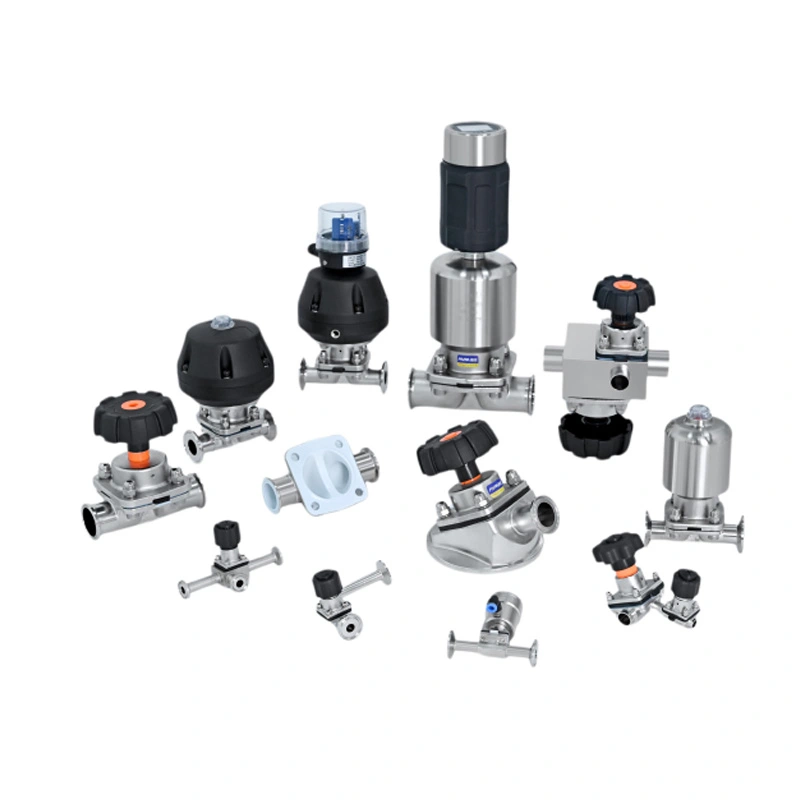

Unlike conventional diaphragm valves with complex branch structures or multiple welded sections, the U-shaped body creates a streamlined process channel with fewer stagnant areas. This makes the Sanitary U-Shaped Diaphragm Valve suitable for pharmaceutical, biotechnology, food, beverage, dairy, cosmetic, and high-purity chemical applications requiring reliable CIP and SIP performance.
Manufactured from sanitary stainless steel with precision-finished product-contact surfaces, AVM U-Shaped Diaphragm Valve provides reliable shut-off, excellent drainability, and stable hygienic performance for demanding production environments.

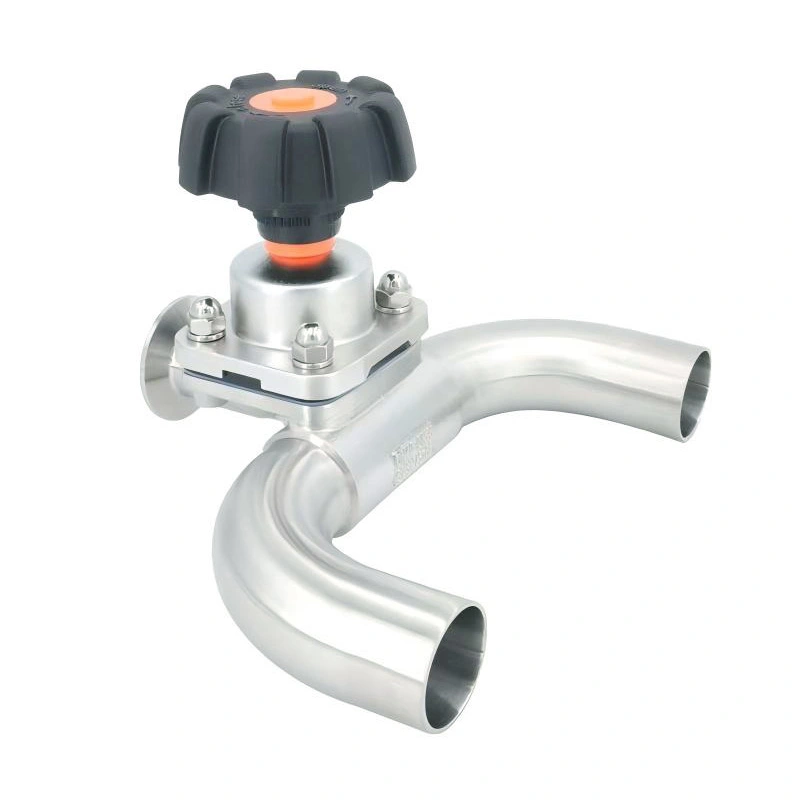

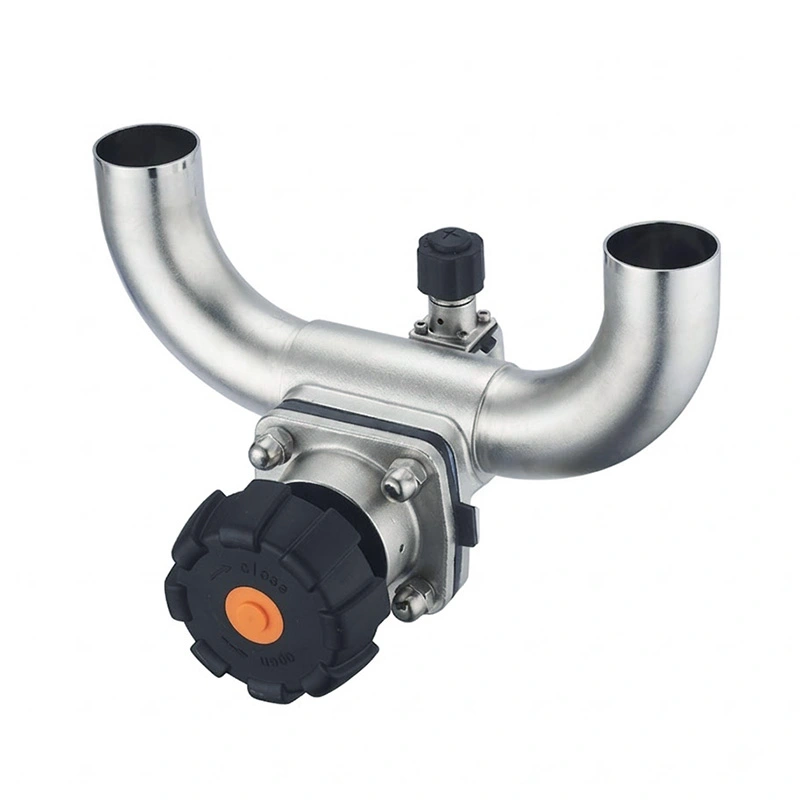

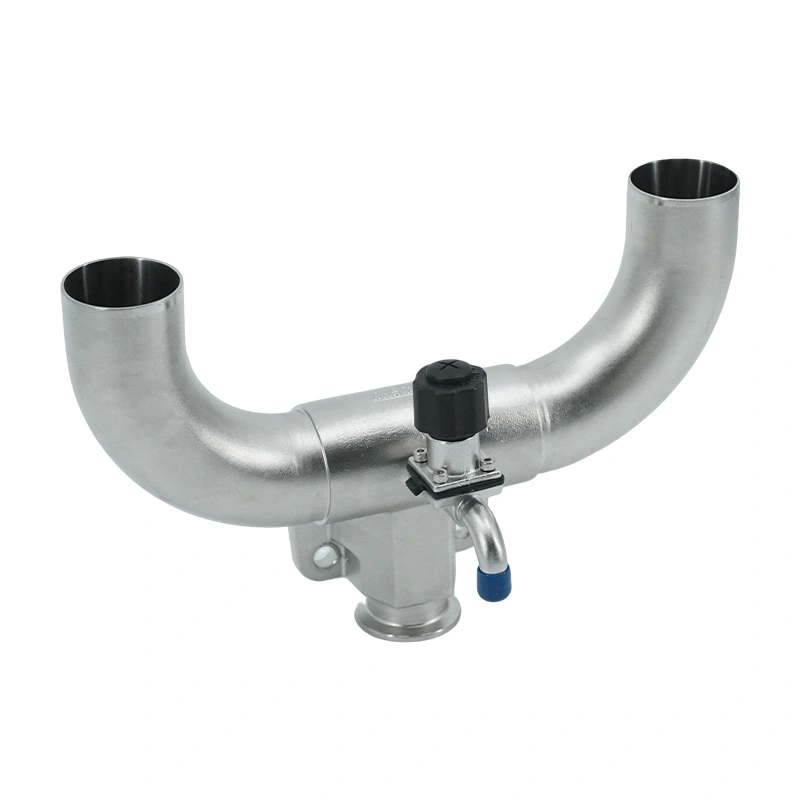

The main advantage of the AVM U-Shaped Diaphragm Valve is its integrated curved body design. The internal flow path is optimized to reduce stagnant areas and unnecessary material retention around the valve branches. Compared with conventional valve configurations, the U-shaped structure promotes smoother media movement and more effective self-draining after processing.
The reduced number of internal connection points also helps simplify cleaning and lowers the risk of residue remaining inside the process line. This makes the valve particularly valuable for applications involving frequent product changeovers and strict sanitation requirements.
The flexible diaphragm acts as both the sealing component and the barrier between the process media and the operating mechanism. During operation, the process fluid remains isolated from the valve stem and actuator components, reducing contamination risks and eliminating the external leakage problems associated with traditional packing structures.
This configuration provides reliable media isolation while also simplifying maintenance, making it suitable for pharmaceutical liquids, purified water, biological media, and other high-purity process fluids.
The internal geometry of the valve is designed to minimize areas where liquids or product residues can remain after production. A smoother flow path improves drainage and helps reduce the possibility of microbial growth or cross-contamination between production batches.
For pharmaceutical and biotechnology manufacturers, this low dead-leg configuration can simplify cleaning validation and support consistent hygienic performance during repeated CIP and SIP cycles.
When the valve closes, the diaphragm is pressed against the valve seat to create a secure barrier across the flow path. The flexible sealing element provides stable shut-off performance while maintaining separation between the process fluid and operating mechanism.
The diaphragm can also be replaced according to maintenance requirements without replacing the complete valve assembly, helping reduce service time and long-term maintenance costs.
AVM U-Shaped Diaphragm Valve is available in SUS304, SUS304L, SUS316, and SUS316L stainless steel configurations. For applications requiring higher corrosion resistance and product purity, SS316L is suitable for product-contact components.
Product-contact surfaces can be mechanically polished or electropolished to Ra <0.4 μm, providing a smooth surface that reduces residue adhesion and supports hygienic production requirements.
AVM Sanitary U-Shaped Diaphragm Valve controls the process flow through vertical movement of a flexible diaphragm. When the actuator lifts the valve stem, the diaphragm moves away from the valve seat and opens the U-shaped flow channel, allowing the process medium to pass through the valve.
When the valve stem moves downward, the diaphragm is pressed against the precision-machined valve seat and closes the flow passage. Because the diaphragm completely separates the process fluid from the operating mechanism, the valve maintains a clean process path while reducing the risk of stem leakage and media contamination.
The integrated U-shaped body further improves drainage by guiding residual media toward the outlet instead of allowing it to remain in stagnant areas.
AVM U-Shaped Diaphragm Valve is suitable for pharmaceutical process piping, purified water systems, WFI systems, sterile liquid transfer, API processing, and other applications where hygienic flow distribution and reliable isolation are required.
The valve can be integrated into bioreactors, fermentation systems, cell culture equipment, sterile processing lines, and other biotechnology systems where low dead legs and effective CIP/SIP cleaning are important.
The sanitary flow path makes the valve suitable for dairy products, beverages, liquid food ingredients, brewing systems, and other hygienic processing applications that require reliable cleaning and drainage.
AVM U-Shaped Diaphragm Valve can also be used for high-purity chemicals, cosmetic ingredients, specialty fluids, and other process media where corrosion resistance, cleanability, and product protection are important.
| Parameter | Specification |
| Valve Type | Sanitary U-Shaped Diaphragm Valve |
| Flow Configuration | U-Type Three-Way |
| Nominal Size | DN10–DN80 |
| Maximum Working Pressure | 10 bar / 145 psi |
| Working Temperature | -20°C to +150°C |
| Body Material | SUS304, SUS304L, SUS316, SUS316L |
| Diaphragm Materials | EPDM, PTFE, Silicone, FKM, PTFE/EPDM Composite |
| Operation | Manual / Pneumatic |
| Connection Types | Tri-Clamp, Butt Weld, Threaded, Flanged |
| Surface Finish | Mechanical or Electropolished, Ra <0.4 μm |
| Connection Standards | DIN, ISO, IDF, 3-A, SMS, ASME BPE, BS, GB |
| Cleaning | CIP / SIP Compatible |
A pharmaceutical processing facility used AVM Sanitary U-Shaped Diaphragm Valve in a sterile liquid distribution system where conventional valve connections were causing residual liquid to remain around branch sections after cleaning. The U-shaped valve configuration provided a smoother drainage path and reduced product retention during CIP cycles, helping the customer improve cleaning consistency and simplify routine maintenance.
AVM Sanitary U-Shaped Diaphragm Valve is developed for process systems where drainability and low dead-leg performance are more important than simply controlling fluid flow. Its integrated U-shaped body, flexible diaphragm isolation, smooth product-contact surfaces, and CIP/SIP compatibility provide a practical solution for manufacturers seeking cleaner, more efficient, and easier-to-maintain sanitary process piping.
A U-shaped diaphragm valve is used for hygienic flow control, distribution, and isolation in pharmaceutical, biotechnology, food, beverage, cosmetic, and high-purity processing systems.
The U-shaped body provides a smoother internal flow path that improves drainage and reduces dead legs and product retention. This can help reduce contamination risks and improve CIP/SIP cleaning efficiency.
Yes. The valve is designed for hygienic processing environments and can be manufactured with sanitary materials, polished product-contact surfaces, and connection standards suitable for pharmaceutical and aseptic applications.
