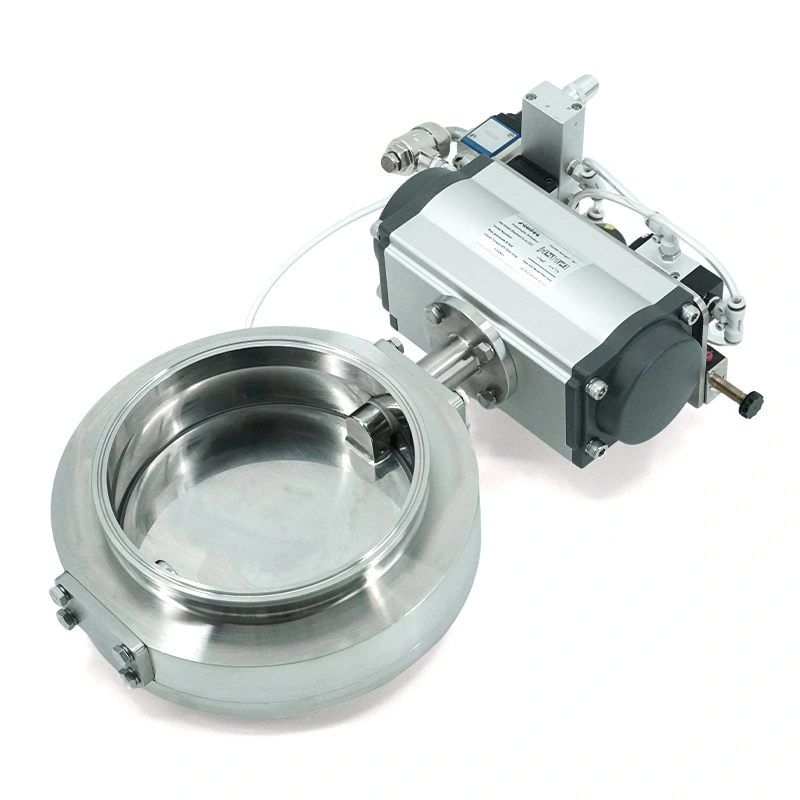

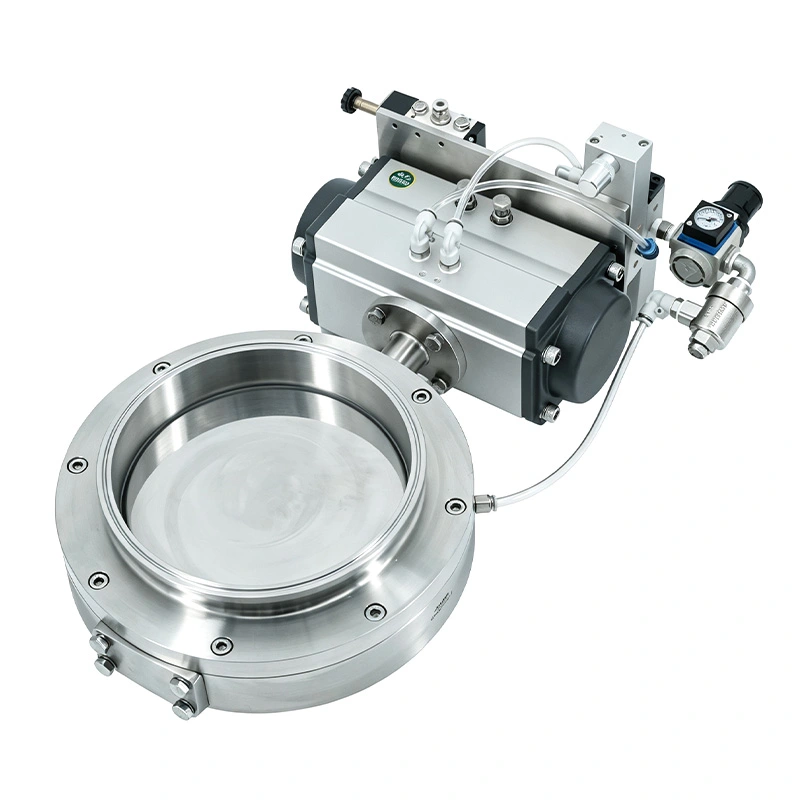

Engineered for the most demanding hygienic environments, the Sanitary Eccentric Butterfly Valve with Retractable Seat delivers uncompromised performance. Its unique eccentric design and retractable seat mechanism significantly reduce seat wear and operating torque throughout the valve's lifecycle. This ensures not only extended service intervals but also provides reliable, bubble-tight shut-off across a wide spectrum of applications—from pharmaceutical and biotechnology to food, nutraceutical, chemical, and advanced battery-material processing.
Conventional butterfly valves keep the disc and seat in contact during rotation. In powder applications, repeated friction can gradually wear the seat, increase operating torque and create particles that may affect product cleanliness.
AVM separates the sealing and movement functions.
During valve movement, the inflatable seat retracts so the disc can rotate with minimal contact. Once the disc reaches the closed position, compressed air activates the seal and creates the required sealing pressure.
This makes the valve particularly suitable for high-frequency switching and abrasive powder handling.

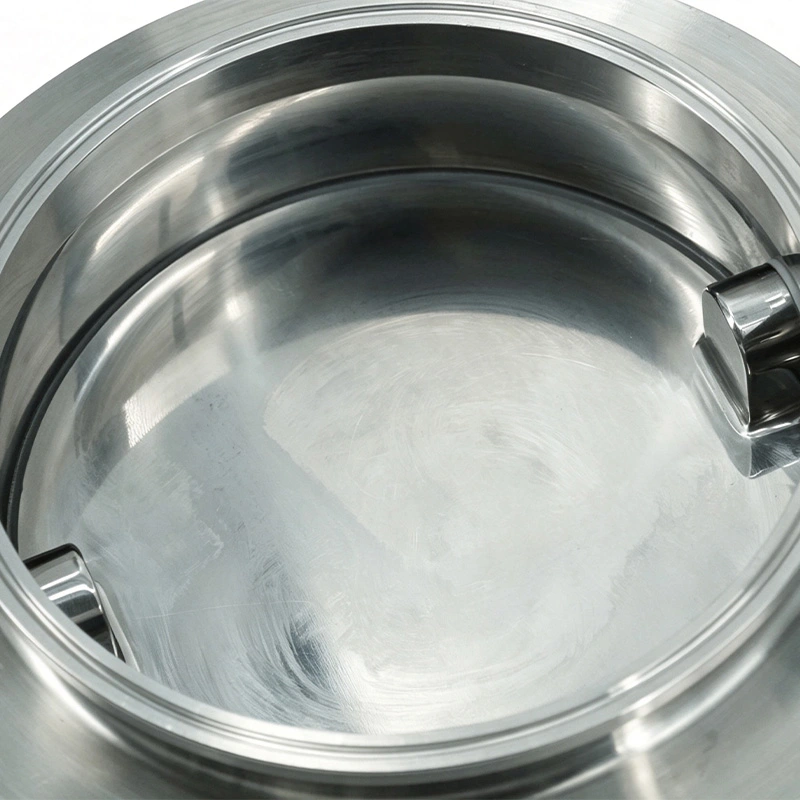

Before the disc moves, the inflatable seal is deflated and retracts from the sealing surface. The eccentric disc then rotates without continuous rubbing against the seat.
This reduces mechanical wear and helps maintain stable operating torque over repeated cycles.
When the disc reaches the closed position, compressed air inflates the sealing chamber. The seal expands uniformly against the disc to create a tight barrier.
The Sanitary Eccentric Butterfly Valve With Retractable Seat can therefore provide reliable shut-off while avoiding unnecessary seal contact during every opening and closing cycle.
The eccentric disc and retractable seat are especially valuable in automated production lines where valves may operate repeatedly throughout the day.
With substantially reduced friction between the disc and seat, the design can support an operational life of up to 1–3 million switching cycles, depending on operating conditions, sealing material and maintenance.
The lower operating resistance can also reduce actuator requirements compared with conventional friction-based designs.
The valve is suitable for materials such as powders, granules and crystals that can accelerate conventional seat wear.
Typical applications include:
Used for powder charging, discharge and isolation where product containment, cleanability and repeatable operation are important.
Suitable for handling abrasive dry materials where minimizing seal wear and contamination is a key concern.
The hygienic stainless-steel construction and smooth product-contact surfaces support sanitary production environments.
The inflatable seat provides reliable sealing for lines operating under both vacuum and positive pressure conditions.
The Sanitary Eccentric Butterfly Valve With Retractable Seat is manufactured from SUS304 or SUS316L, with product-contact surfaces available at Ra <0.4 μm.
Its low-retention internal design minimizes areas where powders can accumulate, supporting CIP/SIP cleaning and reducing contamination risks during product changeover.
FDA-compliant sealing materials and EN 10204 3.1 material certificates are available for applicable configurations.
| Parameter | Specification |
| Valve Type | Sanitary Eccentric Butterfly Valve with Retractable Seat |
| Size | DN50–DN300 |
| Body Material | SUS304 / SUS316L |
| Inflatable Seal | EPDM, Silicone, FKM/Viton |
| Product Contact Finish | Ra <0.4 μm |
| Non-Contact Finish | Ra <0.8 μm |

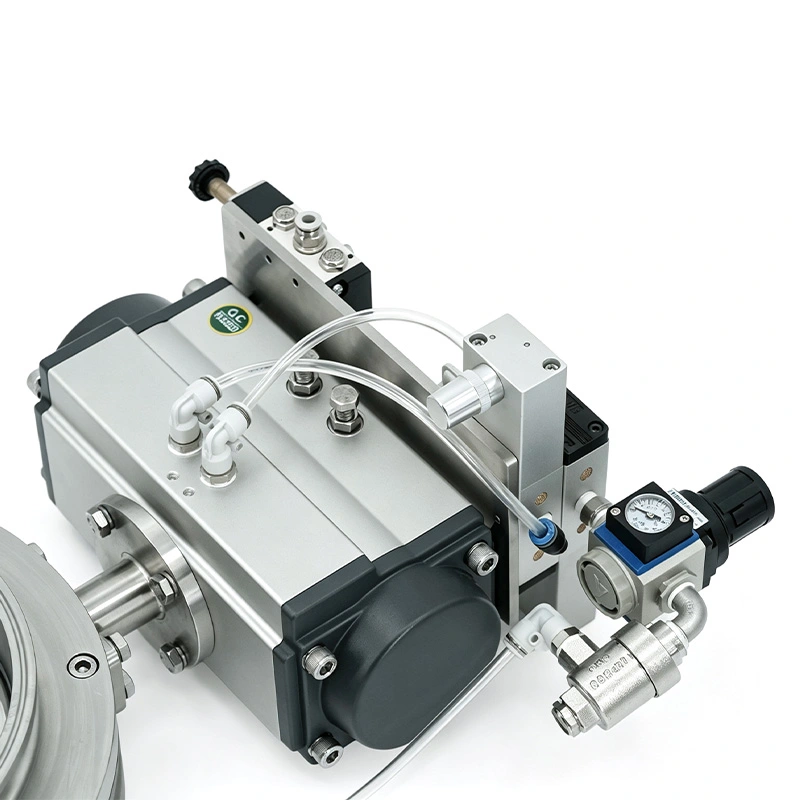

| Operation | Pneumatic Actuator |
| Connections | Tri-Clamp, Flange, Welded |
| Cleaning | CIP / SIP |
| Explosion-Proof Option | ATEX II 2 GD T4 |
| Connection Standards | DIN 11850 Series 2, ASME BPE, ISO 1127 Series 1, GB/T 17395 |
| Compliance Options | FDA-compliant Seals, GMP-Oriented Design, EN 10204 3.1 |
| Consideration | AVM Retractable Seat Valve | Conventional Butterfly Valve |
| Disc/Seat Contact During Rotation | Retracted | Continuous contact |
| Seat Friction | Very low | Higher |
| Wear Resistance | Excellent | Depends on material |
| Operating Torque | Low | Relatively higher |
| Frequent Cycling | Well suited | Seat wear can become a concern |
| Abrasive Powder | Suitable | Seat selection is critical |
| Sealing | Inflatable seat | Fixed seat |
| Maintenance | Reduced seat wear | More frequent seat inspection may be required |
A pharmaceutical manufacturer needed a sanitary isolation valve for a powder transfer line operating with frequent automated switching. The customer had experienced increasing operating resistance with conventional butterfly valves as the sealing components wore during repeated cycles.
AVM supplied the eccentric butterfly valve with a retractable inflatable seat. The customer specifically evaluated actuation torque, seat wear and sealing stability after repeated operation. Because the seal retracts before disc movement, the valve reduced continuous rubbing during cycling and provided more consistent operation.
A battery-material processor required a valve for dry powder transfer where abrasive material could accelerate conventional seat wear. The customer selected the retractable-seat configuration because the sealing element was not continuously dragged by the disc during operation.
The customer's feedback focused on lower concern over seat abrasion, stable actuation and easier long-term maintenance, particularly for a production line with repeated opening and closing.
AVM sanitary valve solutions support applicable 3-A Sanitary Standards, ISO 9001, CE and FDA compliance. Depending on the selected configuration, the valve can also be supplied with FDA-compliant sealing materials, GMP-oriented hygienic construction and EN 10204 3.1 material documentation.
An ATEX II 2 GD T4 explosion-proof configuration is available for applicable hazardous-area requirements.
The seat retracts before the disc rotates, minimizing friction and wear. It then inflates after closure to provide reliable sealing.
Yes. The reduced disc-to-seat contact makes it particularly suitable for powders, granules and crystals that may accelerate conventional seat wear.
Yes. The inflatable sealing system is suitable for both vacuum and positive-pressure process conditions when correctly configured.
Yes. The sanitary configuration supports CIP/SIP cleaning, subject to the selected materials and process conditions.
EPDM, Silicone and FKM/Viton are available. FDA-compliant grades can be selected for applicable pharmaceutical and food applications.
Yes. Sanitary Eccentric Butterfly Valve With Retractable Seat is operated by a pneumatic actuator and can be integrated with automated process-control systems.
