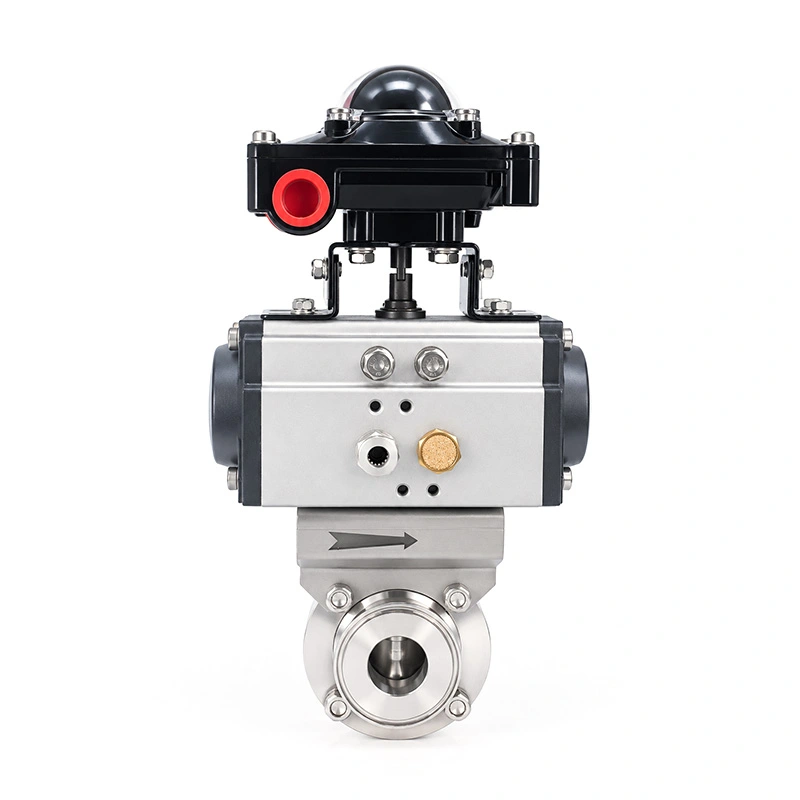

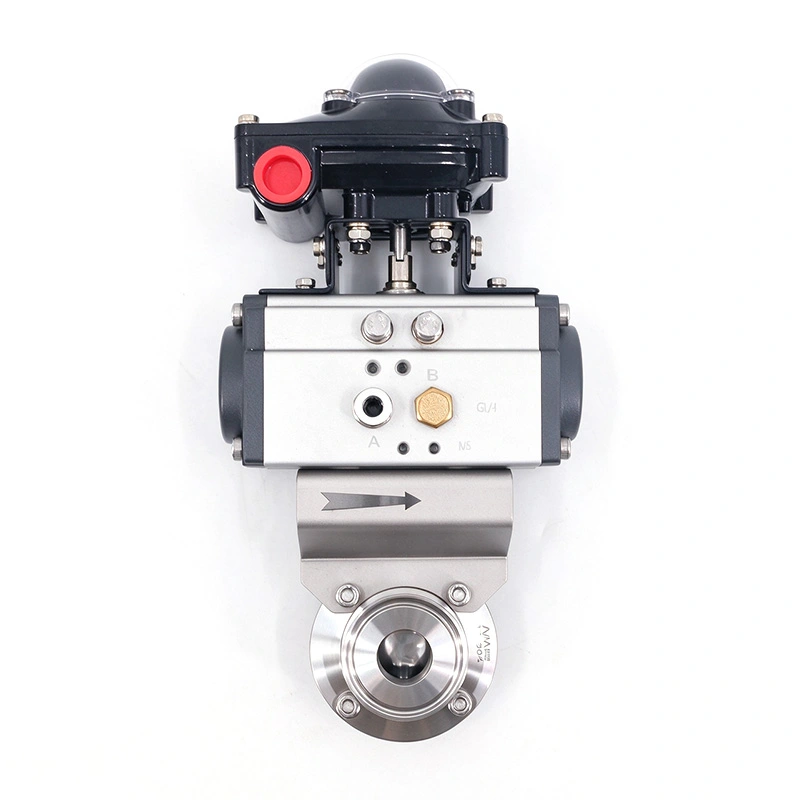

The AVM Sanitary Pneumatic Butterfly Valve with Limit Switch Box combines a sanitary butterfly valve structure with pneumatic actuation and electrical position monitoring. The integrated limit switch box provides real-time OPEN/CLOSED feedback signals to PLC, DCS or control systems, allowing operators to monitor valve status and achieve automated process management.
Manufactured with hygienic stainless steel materials and FDA-compliant sealing components, the valve features smooth internal surfaces, reliable sealing performance and compatibility with CIP cleaning processes. AVM products are manufactured under ISO 9001 quality management systems and meet international requirements including 3-A Sanitary Standards, CE and FDA compliance.
knowing the valve position is as important as controlling the valve itself. A valve without feedback may cause uncertainty during filling, mixing, transfer or CIP processes.
The AVM Sanitary Pneumatic Butterfly Valve with Limit Switch Box uses a position detection system installed on the actuator mechanism. When the valve reaches fully open or fully closed positions, the limit switch box sends corresponding signals to the control system.
The feedback function helps operators achieve real-time monitoring, process interlocking and equipment status confirmation. It is especially suitable for production lines requiring automatic sequencing, multiple valve coordination and centralized control.
By integrating valve operation and position feedback into one system, manufacturers can reduce manual inspection requirements and improve process consistency.
valve design directly affects cleaning efficiency and product safety. Internal dead spaces, rough surfaces or unsuitable sealing materials may increase contamination risks.
AVM sanitary butterfly valves use precision-machined stainless steel bodies with smooth internal flow paths to reduce material retention. The compact structure minimizes maintenance requirements while supporting hygienic operation in demanding environments.
The valve structure is suitable for cleaning-in-place processes, allowing production equipment to be cleaned without frequent disassembly. This helps reduce downtime and improves production efficiency in continuous manufacturing systems.
The smooth surface finish and sanitary sealing design help prevent residue accumulation during fluid transfer, supporting strict hygiene requirements.
AVM provides flexible actuation configurations according to automation level, installation conditions and customer requirements.
The pneumatic actuator provides fast response and repeatable operation, making it suitable for automated pipelines. Normally Open (NO), Normally Closed (NC) and Air-to-Air (A/A) configurations are available according to process requirements.
The pneumatic design allows frequent valve operation while maintaining stable performance in automated production lines.
For simple pipeline control, manual handles including pull handles, multi-position plastic handles and stainless steel handles can be selected.
Electric actuators are also available for systems requiring electrical control integration and centralized automation management.
Therefore, different material combinations and connection designs are available.
The valve body can be manufactured from SUS304 or SUS316L stainless steel, providing excellent corrosion resistance and long service life in hygienic environments.
Sealing materials including silicone, EPDM and FKM are available with FDA-compliant options for different working conditions.
Connection types include welded, clamp, threaded, flange and union designs, allowing easy integration into existing sanitary pipelines.
| Item | Specification |
| Valve Type | Sanitary Butterfly Valve |
| Body Material | SUS304 / SUS316L |
| Size Range | DN20–DN150 / 1"–6" |
| Standards | 3-A, DIN, ISO/IDF, BS/RJT, ASME/BPE |
| Seal Material | Silicone / EPDM / FKM, FDA compliant |
| Connection | Clamp / Weld / Thread / Flange / Union |
| Operation | Manual / Pneumatic / Electric |
| Pneumatic Type | Normally Open (NO) / Normally Closed (NC) / Air-to-Air (A/A) |
| Feedback System | Limit Switch Box OPEN/CLOSED indication |
| Documentation | Material inspection report available |
The AVM Sanitary Pneumatic Butterfly Valve with Limit Switch Box is widely used in industries requiring hygienic fluid control and automated operation.
Typical applications include:
Used for sterile process pipelines, liquid transfer systems and automated production equipment where contamination control is essential.
Suitable for dairy, beverage, sauce, ingredient mixing and filling systems requiring sanitary operation.
Applied in high-cleanliness fluid handling systems where reliable control and hygienic design are required.
Used for liquid material transfer and processing equipment requiring smooth surfaces and easy cleaning.
The valve can also be applied in CIP systems, tank inlet/outlet control, filling lines and automated process pipelines.
Testing focuses on sealing performance, material quality, operating reliability and position feedback accuracy.
Each valve is tested under controlled pressure conditions to verify sealing performance and ensure there is no abnormal leakage during operation.
This process helps confirm long-term reliability in continuous production environments.
The limit switch box is tested to confirm accurate OPEN/CLOSED signal transmission and reliable communication with PLC or control systems.
This ensures the valve can operate correctly within automated production systems.
Stainless steel materials, machining quality and surface finishing are inspected to ensure hygienic requirements are maintained for food and pharmaceutical applications.
AVM operates under ISO 9001 quality management standards and provides sanitary valve solutions meeting international market requirements.
Products are designed according to 3-A Sanitary Standards and available with CE and FDA compliant documentation.
Through strict production control, material verification and performance testing, AVM helps customers build safer and more reliable hygienic processing systems.
The limit switch box detects valve opening and closing positions and sends feedback signals to PLC, DCS or control systems for automated monitoring and process control.
Yes. The sanitary design supports hygienic processing environments and is suitable for CIP applications when the correct material and configuration are selected.
They are commonly used in pharmaceutical, food, beverage, dairy, biotechnology and cosmetic processing systems requiring hygienic fluid control.
AVM provides silicone, EPDM and FKM sealing options. FDA-compliant sealing materials are available according to application requirements.
Yes. AVM supports customization of valve size, connection type, actuator configuration, sealing materials and feedback systems according to customer process requirements.
AVM focuses on providing hygienic flow control products that combine sanitary design, automation capability and reliable performance.
Through stainless steel manufacturing, strict quality inspection and international certification systems, AVM provides customers with stable valve solutions for food, pharmaceutical and high-cleanliness industries.
From manual operation to fully automated valve control, AVM delivers sanitary butterfly valve solutions designed for modern production systems requiring safety, efficiency and reliable process management.
