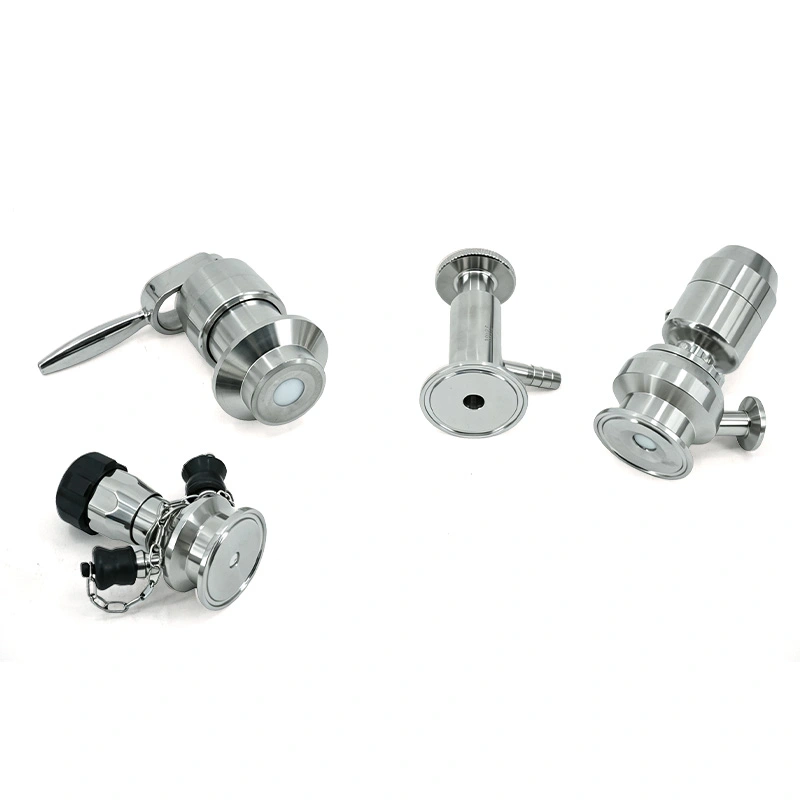

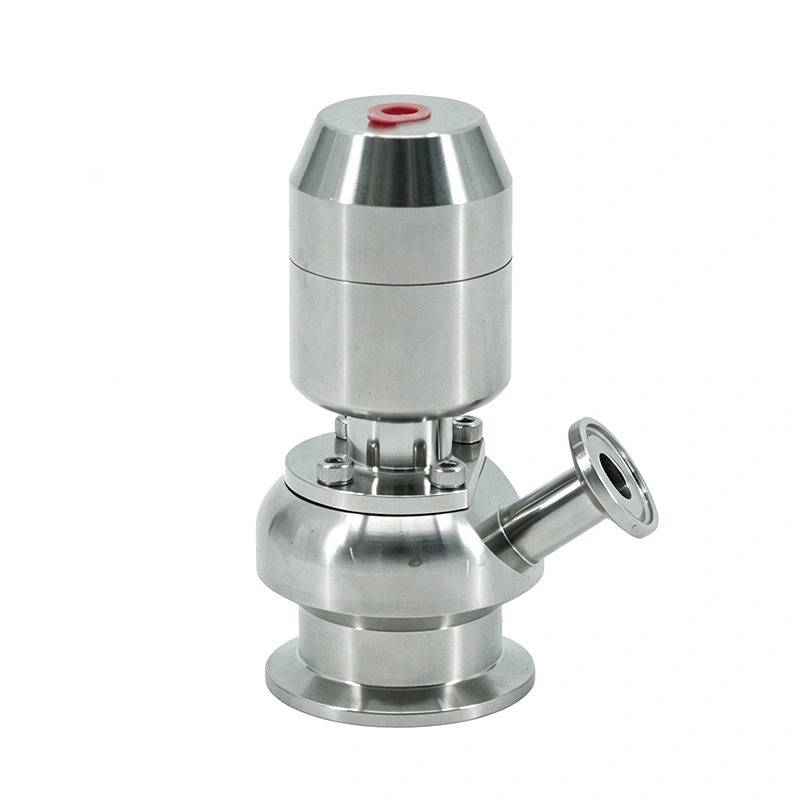

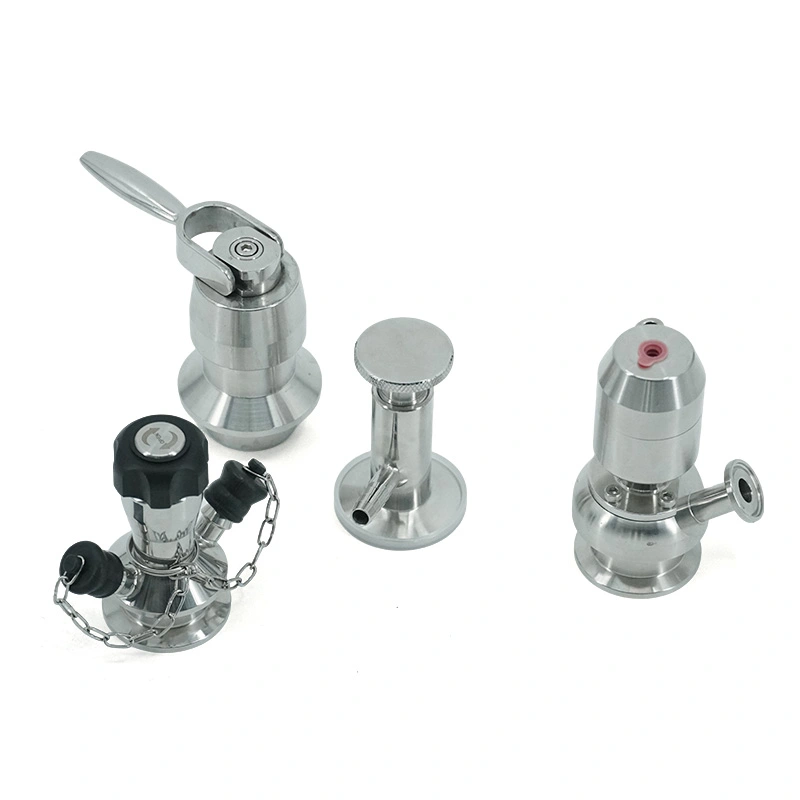

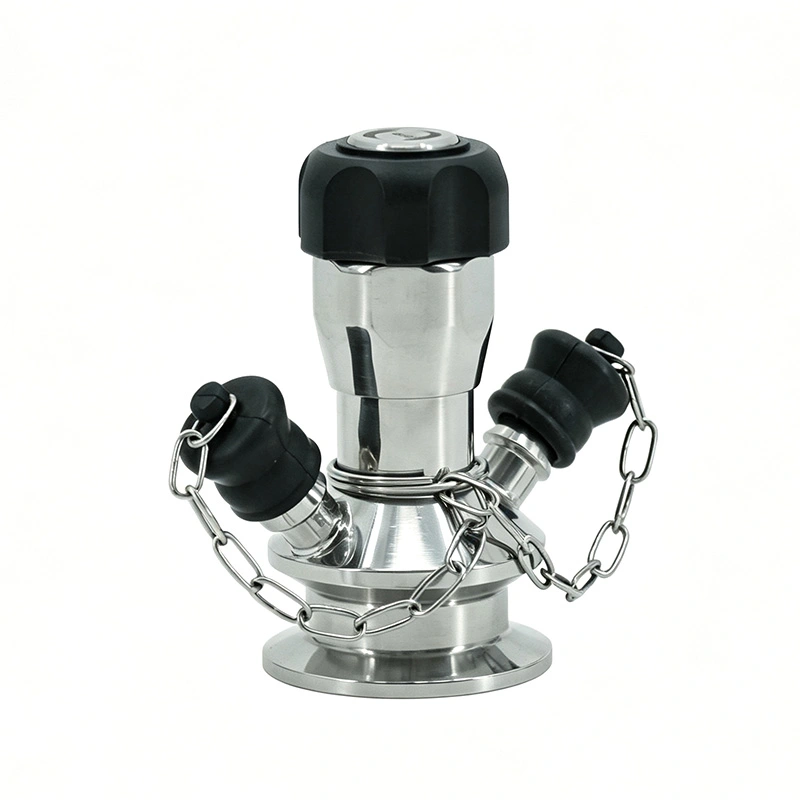

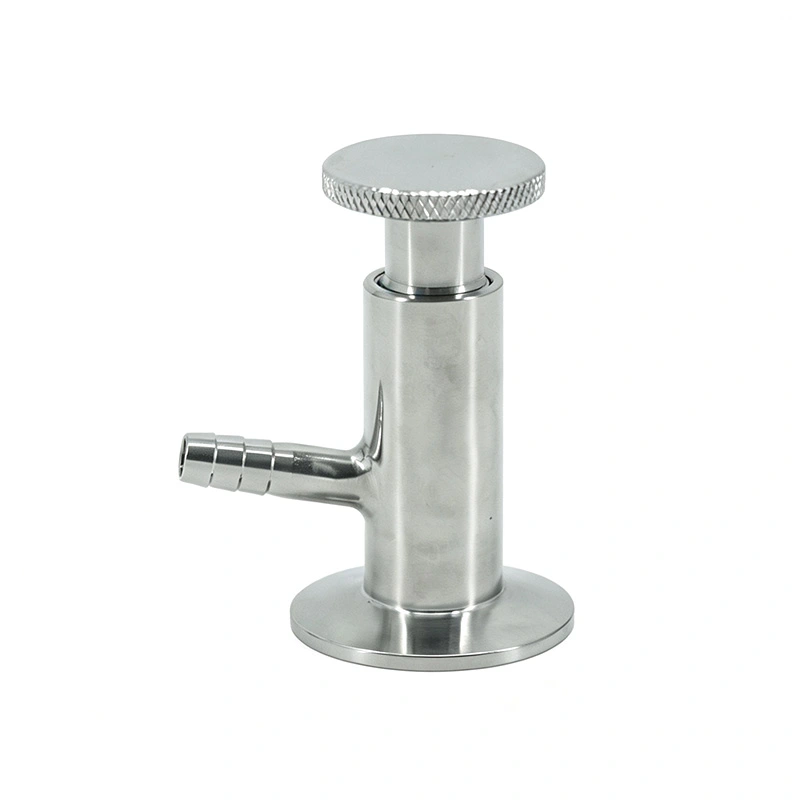

AVM provides hygienic valve solutions for production systems where sample accuracy, process cleanliness, and contamination control are important. The Sanitary Liquid Sampling Valve is designed to collect representative liquid samples directly from pipelines, tanks, and processing equipment while helping reduce unnecessary product exposure. With optimized flow paths, stainless steel construction, and CIP/SIP compatibility, the valve provides a practical sampling solution for pharmaceutical, biotechnology, food, beverage, and cosmetic processing environments.
The Sanitary Liquid Sampling Valve allows operators to collect liquid samples directly from pipelines, tanks, or process vessels without unnecessarily interrupting the main production process. The optimized internal structure helps the collected sample reflect actual process conditions, supporting routine quality control and production monitoring.
It can be used for raw material inspection, intermediate process testing, and final product verification. By providing a controlled sampling point, the valve helps reduce unnecessary external exposure during sample collection.
The valve uses a manual operating method that allows operators to control the sampling process directly. Once opened, the process liquid flows through the sampling channel into a suitable collection container. After sampling, the valve can be closed to restore system sealing.
The internal flow path is designed to minimize unnecessary dead-leg areas and product retention. Smooth product-contact surfaces help reduce residue accumulation, which is important for hygienic production systems requiring regular cleaning.
The Sanitary Liquid Sampling Valve supports integration with CIP and SIP procedures. This helps manufacturers include the valve in existing cleaning and sterilization processes, reducing manual cleaning requirements and improving maintenance efficiency.
The hygienic valve structure helps reduce the possibility of bacterial growth, product accumulation, and cross-contamination. This makes it suitable for applications where process cleanliness and sample integrity are important.
| Parameter | Specification |
|---|---|
| Body Material | SS304 / SS316L |
| Seal Material | EPDM / Silicone |
| Connection Size | DN8-DN25 (1/4"-1") |
| Connection Type | Clamp / Weld End / Threaded |
| Operating Pressure | Up to 6 bar |
| Operating Temperature | -30℃ to +150℃, depending on seal material |
| Operation | Manual |
| Sterilization | CIP / SIP Compatible |
| Application Medium | Liquid products and process fluids |
AVM offers SS304 and SS316L material options to meet different hygiene and corrosion-resistance requirements. Customers can select suitable materials according to the characteristics of the process medium, cleaning agents, and operating environment.
EPDM and silicone sealing materials are available for different process conditions. Proper seal selection helps maintain reliable valve performance during repeated operation, cleaning cycles, and temperature changes.
Clamp, weld-end, and threaded connection options are available to support integration with different pipeline systems. The Sanitary Liquid Sampling Valve can be configured according to existing process layouts and installation requirements.
Before selecting a hygienic sampling valve, buyers should consider the process medium, pipeline size, installation location, operating pressure, temperature range, and required sampling frequency.
For pharmaceutical and biotechnology applications, material selection and sterilization compatibility are often important considerations. Food and beverage producers may focus on cleaning efficiency and product-contact surfaces, while cosmetic manufacturers may require specific sealing and connection configurations for different formulations.
The valve can be used in purified water systems, process liquid pipelines, fermentation equipment, and pharmaceutical production lines where routine sampling is required for quality monitoring.
Suitable for bioreactors, media preparation systems, and sterile processing environments requiring controlled sample collection and contamination prevention.
The Sanitary Liquid Sampling Valve can be applied in dairy processing, beverage production, brewing operations, and other liquid food production systems for quality inspection and process monitoring.
Used in lotion, liquid cosmetic, and personal care production lines where samples may be required for formulation verification, batch inspection, and quality testing.
Regular maintenance helps maintain hygienic performance and reliable operation. Cleaning procedures should be carried out according to production requirements and the characteristics of the process medium.
Regular CIP procedures can help remove process residues from the valve and maintain hygienic product-contact surfaces.
Sealing components should be inspected periodically. Worn or damaged seals should be replaced as part of preventive maintenance to help maintain reliable system sealing.
For sterile production systems, SIP procedures can be performed according to process requirements. Manufacturers should establish appropriate cleaning and validation procedures based on their own production standards.
AVM provides configuration support for customers with different hygienic process requirements. Available options include connection types, stainless steel materials, sealing materials, and application-based specifications.
With ISO 9001 quality management, CE certification, and FDA-related compliance support, AVM provides hygienic valve solutions for pharmaceutical, biotechnology, food, beverage, and cosmetic processing systems. The Sanitary Liquid Sampling Valve is designed to support controlled sample collection, process cleanliness, and reliable long-term operation.
The Sanitary Liquid Sampling Valve is used to collect liquid samples from pipelines, tanks, and process vessels for quality testing and production monitoring. Its hygienic design helps reduce product retention and supports controlled sampling.
Yes. Depending on the selected material and configuration, the valve can be used in pharmaceutical, biotechnology, food, beverage, cosmetic, and other hygienic liquid processing systems.
Yes. The valve is compatible with CIP and SIP procedures, helping manufacturers integrate the sampling point into existing cleaning and sterilization systems.
Yes. AVM supports customized connection types, stainless steel materials, sealing materials, and other specifications according to different pipeline systems and operating conditions.
