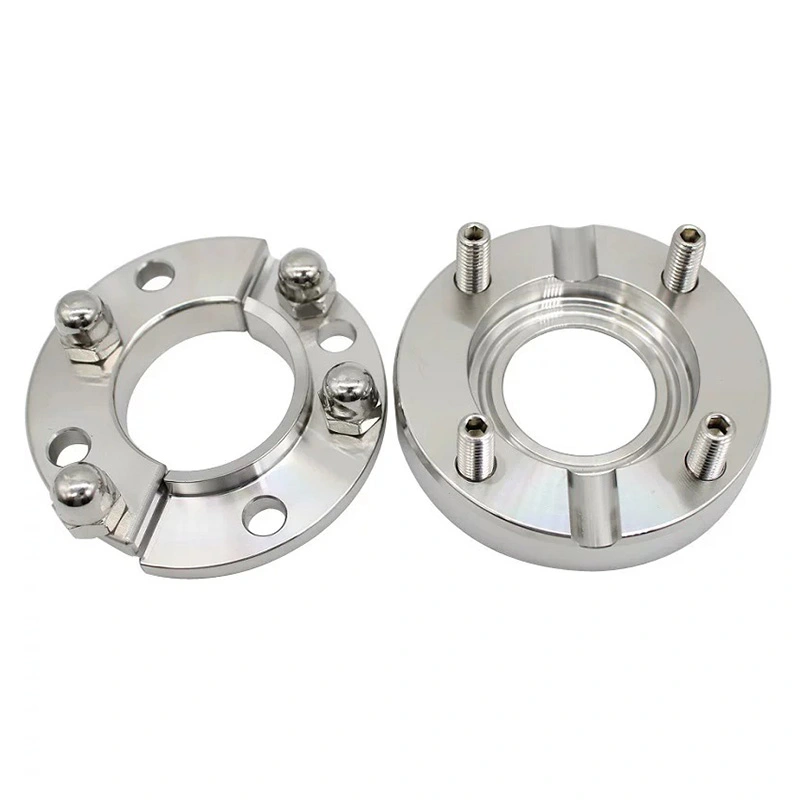

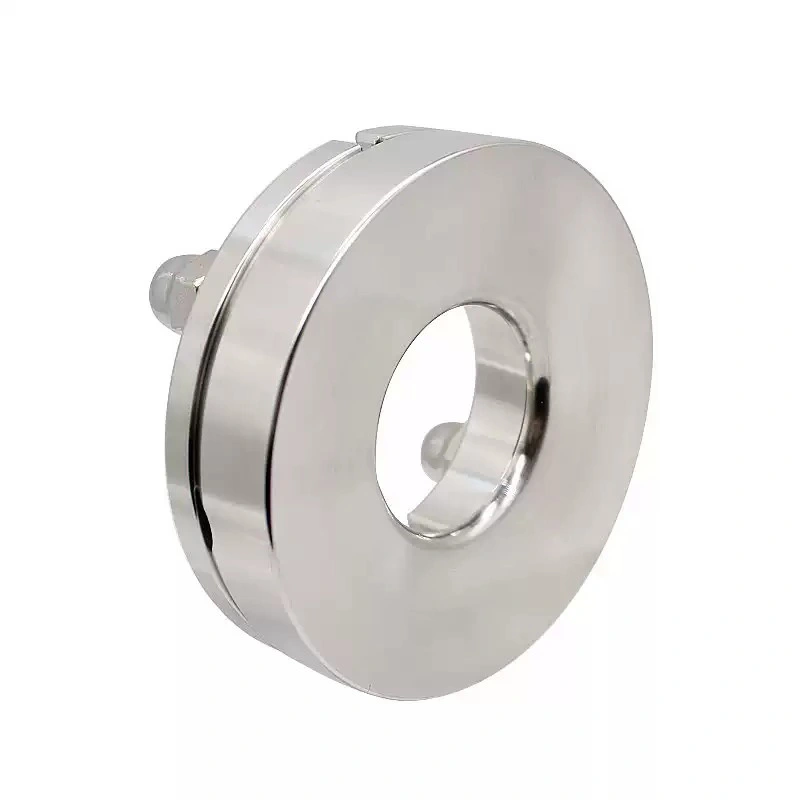

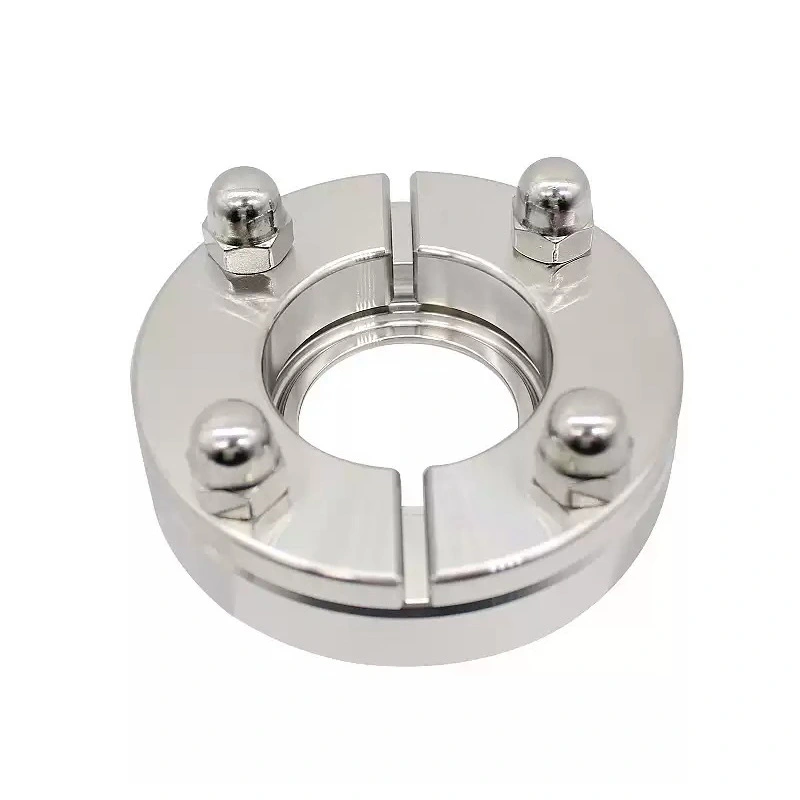

Manufactured from SUS316 stainless steel, the Sterile Stainless Steel Tank Flange provides corrosion resistance and mechanical stability for hygienic processing environments. The NA sterile interface and TC clamp connection allow compatible sanitary components to be installed, removed, inspected, and maintained efficiently.
The flange is suitable for food and beverage, dairy, biopharmaceutical, semiconductor, electronics, cleanroom, and high-purity processing systems. Its drainage structure helps reduce liquid accumulation around the mounting groove, while the hygienic connection structure supports cleanable and stable installation.
The AVM Sterile Stainless Steel Tank Flange provides a dedicated hygienic interface between the tank and mounted process equipment. It can be used for temperature sensors, level sensors, sampling valves, TC clamp equipment, and other compatible sanitary instruments. Depending on the tank design, the flange can be positioned on the tank top, bottom, or side wall.
The product is manufactured from SUS316 stainless steel, providing corrosion resistance and mechanical stability for environments exposed to moisture, cleaning procedures, and process fluids. The stainless steel construction is suitable for applications where equipment cleanliness and process purity are important.
The flange incorporates a drain hole in the mounting groove to help remove condensation, residual liquid, and impurities from the interface area. This structure helps reduce liquid accumulation, keep the mounting area cleaner, and reduce moisture-related corrosion risks during operation.
The connection surfaces are designed for sanitary process equipment, with a smooth structure intended to reduce areas where contaminants can accumulate. The fixed surface distance is designed to remain close to the corresponding contact surface distance, helping provide a stable connection between the flange and compatible equipment.
The AVM Sterile Stainless Steel Tank Flange is designed for systems using CIP (Clean-in-Place) and SIP (Sterilize-in-Place) procedures. Its stainless steel construction and hygienic structure allow it to be incorporated into process equipment where cleaning and sterilization are part of routine production.
Actual CIP/SIP temperature, pressure, chemical concentration, and sterilization duration should be evaluated according to the complete installed system and connected components.
The NA sterile interface / TC clamp connection provides a practical mounting interface for compatible sanitary equipment. The clamp connection allows process components to be installed and removed efficiently for inspection, calibration, replacement, or maintenance.
The flange can be used for mounting sensors, sampling equipment, and sanitary process components on tanks used for beverage, food ingredient, and liquid food processing.
It is suitable for hygienic tanks and process vessels used for milk, dairy ingredients, and other liquid dairy products where cleanable tank connections are required.
The flange can be incorporated into sanitary tanks and vessels for process monitoring and sampling applications where contamination control and cleanability are important.
It is suitable for high-purity process equipment requiring stainless steel construction and controlled connection interfaces.
The product can be used as a mounting interface for compatible sanitary instruments and tank equipment in controlled production environments.

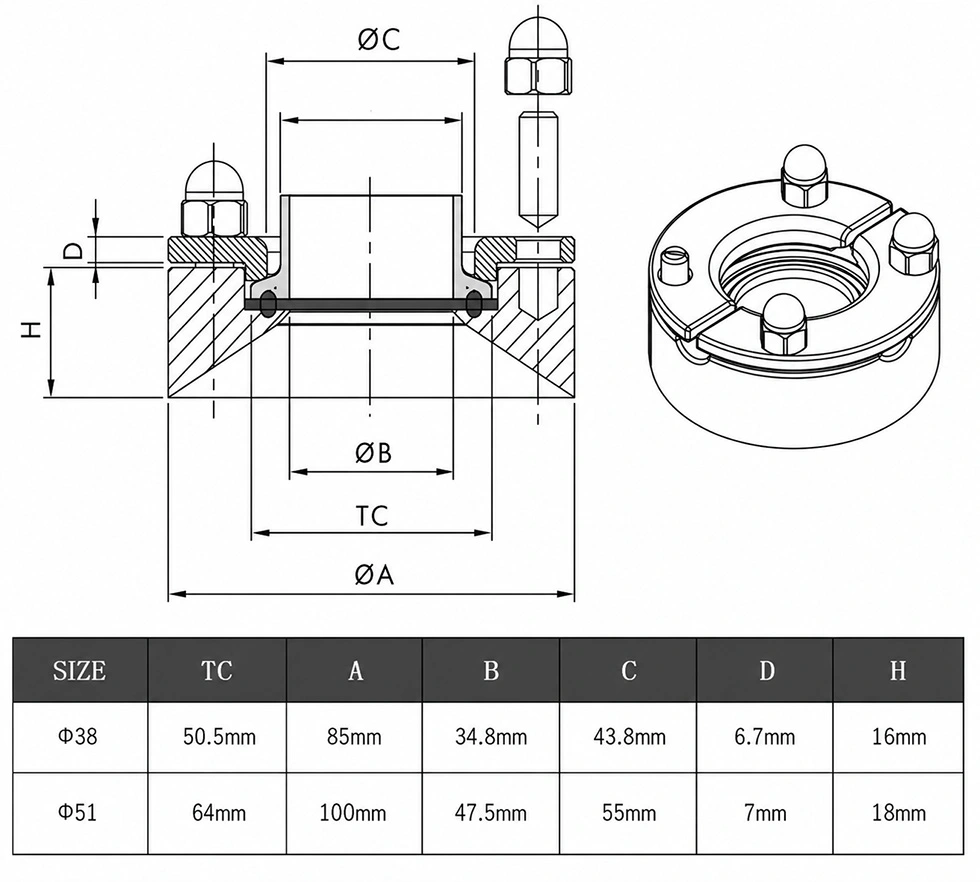

| Item | Specification |
| Material | SUS316 Stainless Steel |
| Interface | NA Sterile Interface / TC Clamp Connection |
| Connection Type | Hygienic Tank Mounting Connection |
| Installation Position | Tank Top / Tank Bottom / Tank Side Wall |
| Application | Sensor Installation, Sampling Valve Installation, Tank Equipment Connection |
| Cleaning | CIP / SIP Compatible |
| Drainage | Built-in Drain Hole |
For applicable sanitary processing projects, the product configuration can be specified according to 3-A Sanitary Standards requirements. Buyers should confirm the required 3-A certification scope and documentation according to the actual application and ordered configuration.
For hygienic equipment used in food, dairy, pharmaceutical, and other clean processing environments, the relevant configuration can be evaluated against EHEDG hygienic design requirements. Applicable certification should be confirmed for the specific product configuration.
Materials and sealing components can be specified according to applicable FDA requirements, helping meet material-contact requirements for sanitary processing applications. The exact FDA documentation should be confirmed according to the selected material and configuration.
For tank flange selection, connection compatibility is more important than simply choosing a nominal size. Buyers should confirm the tank installation position, NA interface specification, TC clamp connection size, connected sensor or sampling valve model, stainless steel grade, sealing requirements, CIP/SIP conditions, and required certification documentation before ordering.
Providing the tank drawing or connected equipment specifications can help AVM determine the appropriate flange configuration.
A typical installation structure is Sanitary Tank → Tank Flange → TC Clamp Connection → Sensor or Sampling Valve. This arrangement provides a dedicated mounting point while allowing the connected component to be removed for inspection, cleaning, calibration, or replacement.
It is mainly used for installing temperature sensors, level sensors, sampling valves, and compatible TC sanitary equipment on tanks and process vessels.
It can be configured for installation on the top, bottom, or side wall of a sanitary tank, depending on the tank structure and process equipment requirements.
The standard material is SUS316 stainless steel. If a specific stainless steel grade or material documentation is required, buyers should confirm it when requesting a quotation.
Yes. The flange is designed for systems using CIP and SIP cleaning or sterilization processes. Actual operating parameters should be evaluated according to the complete system.
The product can be configured and documented according to applicable 3-A, EHEDG, and FDA-related sanitary requirements. Certification and compliance documentation depend on the actual material, sealing components, product configuration, and application, so buyers should confirm the required documentation before ordering.
The built-in drain hole helps remove condensation, residual liquid, and impurities from the mounting groove, reducing liquid retention around the connection area.
The product uses an NA sterile interface with a TC clamp connection for compatible sanitary tank equipment.
Our standard production lead time is 7–10 days. The actual delivery time depends on order quantity, product configuration, and material availability. For urgent requirements, contact AVM to confirm the available production schedule.
We accept a 30% deposit, with the remaining 70% paid before shipment via T/T or L/C. Small-value orders should be paid in full before production.
The product is securely packed using paper and wooden cases to reduce the risk of damage during transportation.
